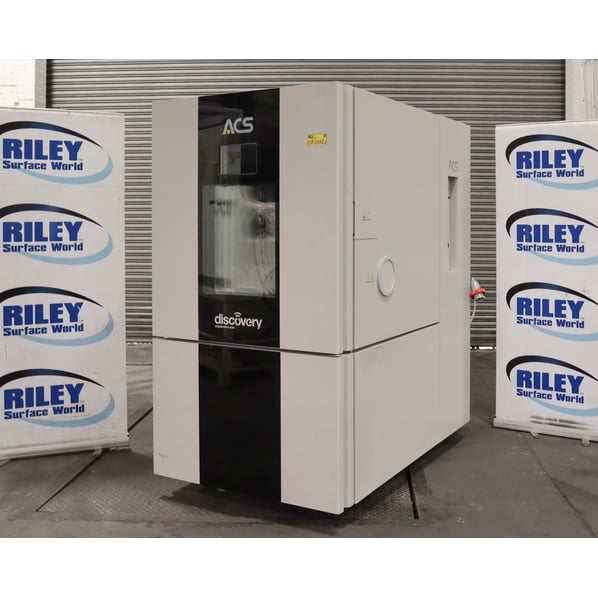

Angelantoni ACS DM600E Environmental Chamber

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Unused, Current Model
Buy Now Add to Quote Contact Us
Stock No
OF2682J
Manufacturer
Angelantoni
Model
DM600 E
Year of Manufacture
2023
Serial
TT05401
Condition
Excellent Condition, Unused, Current Model
Internal Size (WxDxH mm) [?]
840 x 720 x 880mm, 553 Litres Capacity
Max Temp
-20°C to +180°C
Other Info
Temp. & Humidity Environmental Chamber
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
875kg
External Dimensions (WxDxH mm) [?]
1101 x 1750 x 2050mm
Delivery
Your delivery options

Description

The Angelantoni ACS DM600 E Environmental Chamber, from the Discovery My “E” Series by Angelantoni Test Technologies, is designed for reliable general purpose environmental testing where stable climatic conditions and controlled temperature and humidity changes are required.

With a generous 553 litre capacity, a temperature range of −20°C to +180°C and humidity control from 10–98% RH, it provides a versatile solution for product evaluation, material testing and environmental qualification.

Suitable for applications across pharmaceuticals, plastics, rubber, paper, electronics and semiconductor industries, this chamber combines precise environmental control with intuitive operation and advanced connectivity. Its MyKratos™ control softwareen ables users to monitor, manage and analyse test cycles remotely via the touchscreen, desktop, tablet or smartphone, helping streamline testing and reduce the need for on-site intervention.

Benefits

  • Wide temperature capability– Test products across a temperature range of −20°C to +180°C.
  • Advanced humidity simulation– Control humidity from 10–98% RH for demanding climatic testing applications.
  • Reliable environmental stability– Maintain temperature fluctuation within ±0.1–0.3 K and humidity fluctuation within ±1–3% RH.
  • Remote monitoring and control– Access chamber operation and recorded data via Wi-Fi or Ethernet, with mobile network access available using an activated SIM card.
  • Simplified test management– Create and manage programmable test cycles, view live measurements and analyse recorded data through MyKratos™.
  • Reduced maintenance intervention– Remote diagnostics, recorded-data analysis and remote adjustment capabilities can help identify issues and optimise chamber operation.
  • Flexible data handling– Store measurements and operating parameters for up to 30 days, with options to archive, export and analyse test records.
  • User-friendly operation– Benefit from an intuitive touchscreen interface, programmable operating modes and automatic event and alarm notifications.

Features

The Angelantoni ACS DM600 E includes:

  • MyKratos™ control software with touchscreen HMI
  • Wi-Fi and Ethernet connectivity, with mobile network access available
  • Remote monitoring, chamber management and test programme editing
  • Programmable and manual operating modes
  • Delayed programme start and storage of test cycles
  • Live graphical monitoring and numerical measurement displays
  • Data recording, archiving, report generation and ASCII export for use with Excel or other applications
  • Automatic event and alarm notifications, with email and optional SMS notifications
  • Inspection window and internal lighting
  • Self-pivoting wheels and adjustable feet
  • Air/water condenser
  • Automatic water feed system and humidification water recycling
  • Minimum/maximum digital thermostat with independent probe
  • Silicone access portholes for instrumentation cables
  • Auxiliary free contacts
  • One internal grid shelf

Specification

Specification

Details

Manufacturer

Angelantoni Test Technologies

Model

ACS DM600 E

Series

Discovery My “E”

Chamber type

Temperature and humidity environmental chamber

Useful capacity

553 litres

Internal dimensions (W × D × H)

850 × 730 × 892 mm

External dimensions (W × D × H)

1,124 × 1,768 × 2,049 mm

Temperature range

−20°C to +180°C

Temperature range for climatic testing

+10°C to +95°C

Temperature fluctuation

±0.1 to ±0.3 K

Humidity range

10–98% RH

Humidity fluctuation

±1–3% RH

Rated power

10.5 kW

Power supply

400 V ±10%, 50 Hz, 3-phase + neutral + ground

Weight

875 kg

Sound pressure level

61 dB(A)

Temperature Control

With a temperature range of −20°C to +180°C, the DM600 E supports a wide variety of thermal testing requirements, including material conditioning, thermal endurance testing, accelerated ageing and product qualification. Its stable temperature regulation helps maintain consistent test conditions throughout programmed cycles.

Humidity Control

The chamber provides humidity control from 10–98% RH, with climatic testing available between +10°C and +95°C. This supports moisture exposure testing, humidity resistance evaluation and assessment of product performance under controlled climatic conditions. The integrated humidification water recycling system further supports practical day-to-day operation.

MyKratos™ Remote Monitoring and Control

The integrated MyKratos™ software allows users to manage and monitor the chamber through its onboard touchscreen or remotely via desktop and mobile devices. Wi-Fi and Ethernet connectivity provide flexible access, while mobile network access is possible with an activated SIM card.

Key capabilities include:

  • Remote access to chamber operation and test parameters
  • Programmable and manual operating modes
  • Test cycle creation, editing, uploading and exporting
  • Storage and graphical analysis of measurements and recordings
  • Live data updates and numerical or graphical displays
  • Automatic event and alarm notifications
  • Email notifications and optional SMS alerts
  • Multi-chamber management from a compatible tablet
  • Password-protected access levels
  • Remote adjustment of PID parameters and PLC programmes
  • Remote software updates to implement available new functions
  • Data archiving, report generation and ASCII file export

The software records measurements and chamber operating parameters for up to 30 days, helping users review test performance and investigate potential issues without always needing to attend the machine.

Typical Applications

The DM600 E is suited to laboratories, research facilities and production environments requiring dependable temperature and humidity testing, including:

  • Pharmaceutical stability studies
  • Electronic component reliability testing
  • Semiconductor qualification
  • Automotive component validation
  • Plastic and rubber ageing tests
  • Packaging and transportation simulation
  • Material research and development
  • Product evaluation and quality assurance

Combining a broad operating range, stable climatic control and connected test management, the Angelantoni ACS DM600 E provides a versatile solution for general-purpose environmental testing without the need for the higher ramp-rate capabilities associated with premium high-performance test systems.

pdf icon Print / Download Angelantoni ACS DM600E Environmental Chamber Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
