Machines & equipment for sale

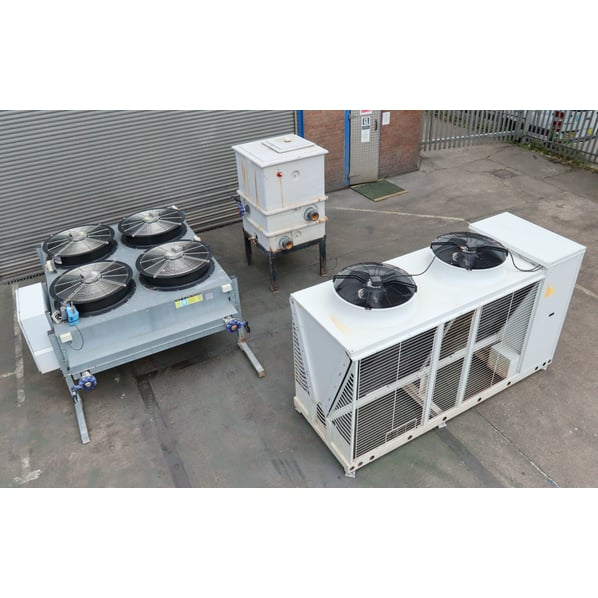

Industrial Cooling Systems (ICS) Free Cooling Packaged IC660 Chiller & Air Blast Cooler

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
CE657A
Manufacturer
Industrial Cooling Systems (ICS)
Model
Free Cooling Package IC660 &189kW Air Blast Cooler
Year of Manufacture
2018
Serial
32092830
Condition
From a working environment, Excellent Condition, Current Model
Ave. cooling capacity
Chiller 189kW : Air Blast 250kW
Ave. Water Flow Rate
9.05L/Sec (12 to 42 M3/Hr)
Other Info
Refrigerant R410A
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
981 + 1007
External Dimensions (WxDxH mm) [?]
6025 x 5235 x 2100mm
Delivery
Your delivery options

Description

ICS Cool Energy is a specialist supplier of engineering solutions for industrial processes, refrigeration and air conditioning. This package comes with an AT/K P2055 air cooled chiller with a capability of extracting 187kW of cooling power. With two axial fans and two scroll compressors and full microprocessor controller. The free cooling unit has four speed controlled fans, plug and play controls, individual overloads with control lamps and volt free contacts.

Advantages of Free Cooler Units

  • Lower plant running costs.
  • Lower carbon footprint of the facility.
  • Far higher co-efficient of performance circa: <18 COP <40.
  • Large savings over time.
  • Prolonged chiller lifetime with reduction in use and less servicing requirements.

Free Cooling Data

  • Ambient °C                         9.00           11.00         13.00       15.00       17.00
  • Duty offload (kW)             177.00      141.60      106.20       70.80       35.40

Amount of year below ambient

  • 24 Hr Operation (%)         43.75        56.47        68.82       79.74       87.76
  • Working Day  (8-6)           34.74        46.27        57.63       68.97       78.95

Total load reduction

  • 24 Hr operation               67.31 for 24 hour.
  • Working day (8-6)           57.31 for 8am to 6pm.

Chiller Unit

  • 1 off independent refrigeration circuit.
  • 2 off scroll compressors.
  • 2 steps of capacity control.
  • Plate evaporator.
  • 2 off axial fans.
  • W3000 microprocessor controller with compact LCD visual display.
  • Mains isolator.
  • Suitable for 400V / 3 Phase / 50 Hz power supply.
  • Numbered wiring.
  • Automatic circuit breakers..
  • Anti UV display protection.
  • Mechanical thermostatic expansion valve.

Air Blast Cooler

  • Energy efficient speed controlled fans.
  • IP65'plug and play' Controls.
  • Door interlocked isolator.
  • Individual loads per fan.
  • Control lamps and volt free contacts.
  • Robust framework and mounting feet.
  • Lifting eyes.

Weir Plated Tank

  • Nominal capacity 1500 Litres.
  • 1000 x 1000 x 1500mm.
  • GRP Construction with foam insulation and re-enforced by square section steel tubing.
  • Complete with encapsulated marine plywood base and weir plate.

Current Price for this package, excluding commissioning and installation would be £60,000

pdf icon Print / Download Industrial Cooling Systems (ICS) Free Cooling Packaged IC660 Chiller & Air Blast Cooler Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
