Machines & equipment for sale

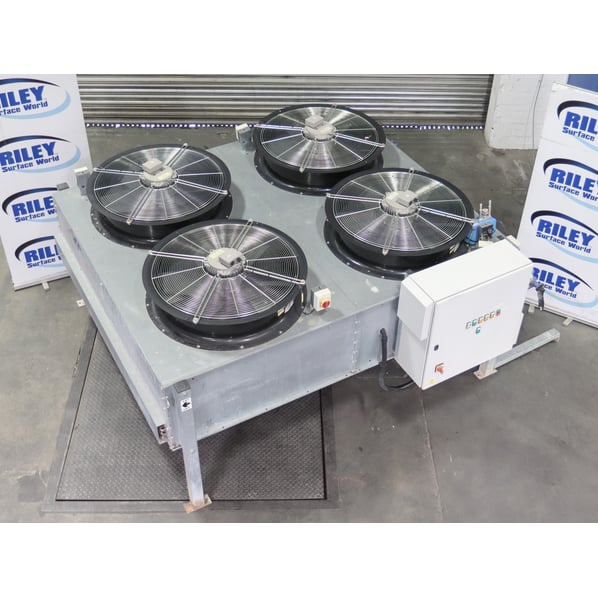

Industrial Cooling Systems (ICS) 4 Fan Air Blast Cooler

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
CE658
Manufacturer
Industrial Cooling Systems (ICS)
Model
9.D.ED.HSFBICCE
Year of Manufacture
2018
Serial
C-55194
Condition
From a working environment, Excellent Condition, Current Model
Ave. cooling capacity
177kW
Ave. Water Flow Rate
9.05L/Sec
Other Info
Coil volume 117 litre
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
890 Dry 1007 Operating
External Dimensions (WxDxH mm) [?]
3400 x 2700 x 1600mm
Delivery
Your delivery options

Description

ICS Air Blast Cooler

Free Coolers

  • Designed to improve the efficiency of energy hungry chilled water systems, free coolers automatically dissipate the system heat when ambient air temperatures are low enough. Operating through the majority of autumn, winter and spring, they allow the chiller to switch off for up to 90% of the year. These systems arrive fully packaged, complete with integral controls, 3 way valve, actuator and bypass pipework; which means they can be easily installed on existing systems.

One of the greatest advantages of Free Cooler units results from utilising lower power consuming coolers during lower ambient conditions, as listed below:-

  • Lower plant running costs
  • Lower carbon footprint of facility
  • Far higher coefficient of performance circa: <18 COP <40
  • Large savings ascertained over time
  • R.O.I. often within 6~9 months (when NEW - faster for used machinery)
  • Prolonged Chiller lifetime from reduction in use with possible positive effects on servicing

 Supplied complete with:



  • Energy efficient speed controlled fans
  • IP65 ‘Plug and Play’ Controls
  • Door inter-locked isolator
  • Individual overloads per fan
  • Control lamps and volt free contacts
  • Robust framework and mounting feet
  • Lifting eyes

Technical Specification 9.D.ED.HBFBI.CDE

  • Design Criteria Application                            Example site
  • Cooling Medium                                               Water
  • Glycol Anti Freeze                                            0%
  • Cooling Medium Flow Rate                            8.47 l/s
  • Pressure Drop - Cooler / Diverter Valve       70 + 9 kPa (Diverter Valve Applicable if Taken)
  • Heat Rejection                                                  177kW
  • Flow Water Temperature                                14°C
  • Return Water Temperature                             19°C
  • Maximum Design Air Temperature               9°C
  • Outlet Air Temperature                                   14°C
  • Air Side Flow Rate                                           24.88sm³/s

Confirmed Noise Figures

ICS Cool Energy design units to meet their customer’s criteria no matter how stringent. In turn confidence is guaranteed as ICS Cool Energy’s fans have been tested on as built cooler modules allowing for the recording of actual and realistic noise figures. This allows for actual proven noise levels to be given to industry standard BS13487. For more information on ICS Cool Energy’s approach to calculating noise, please see the associated sales literature.

Energy Efficient

The current range of ICS Cool Energy equipment offers market leading efficiencies by utilising the most efficient AC and EC fans accompanied by a range of heat exchanger tube geometry and fin options. To fall in line with the ICS Cool Energy commitment to reduce carbon emissions, research and development is constantly being carried out in order to find new ways of improving on this.

Maximum Flexibility

ICS Cool Energy offer a standardised range of air blast water coolers and adiabatic coolers which offers, literally, millions of different options. These are made up from:

  • A variety of module sizes ranging from a single fan flatbed cooler to a 26 fan V-cooler
  • A range of materials to suit any environment (standard, industrial, coastal, offshore etc.)
  • Selection of fans to meet noise, performance and energy efficiency requirements
  • Multiple unit orientations to give necessary options for footprint and site conditions
  • Coil configurations for suitability with many temperature ranges and fluid types

Complete Reliability

Whilst some suppliers focus solely on capital cost (often with the aim of only satisfying the requirements of a rather short 1 year warranty term), ICS Cool Energy have an inherent belief that equipment should be designed to last long after the market leading 3 year warranty term, giving their customers the best possible return on investment.

Fully Supported by OEMs

ICS LogoICS Cooling placed and supported this cell and cooling machinery with seller. They are available for installation, support and spares.
Transtherm Cooling has offered advice and spares for their Air Blast Cooler.

pdf icon Print / Download Industrial Cooling Systems (ICS) 4 Fan Air Blast Cooler Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
