Machines & equipment for sale

Spray Coating Booth

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
GD866
Model
1.5M³
Year of Manufacture
Unkown
Serial
N/A
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
1000mm x 1000mm x 1500mm
Process Stages
Single Stage
Other Info
Optional Extraction Point to LH Wall
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1100mm x 1150mm x 2020mm
Delivery
Your delivery options

Description

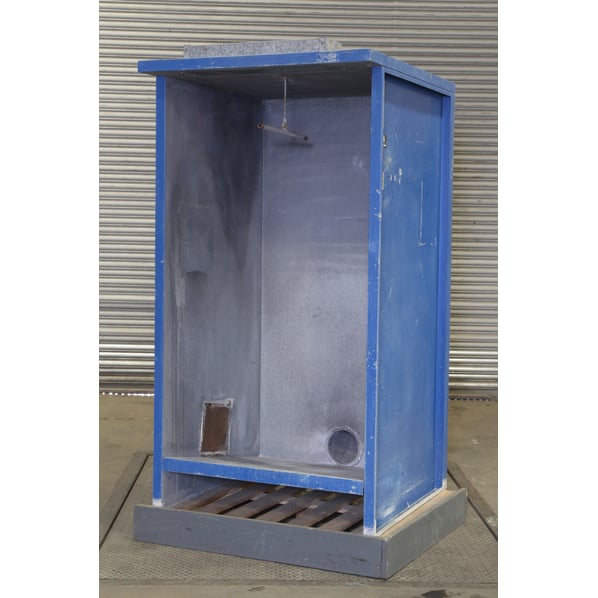

A 1.5m³ Spray booth with internal light and adjustable hanging rail. Robustly made from a steel frame and mild steel painted panels.

Spray Booth

  • Painted mild steel construction.
  • 1100mm x 1150mm x 2020mm.
  • Roof mounted light.
  • Hanging rail. Option to turn to any position.
  • Tapered back floor panel from 250mm to 0mm to aid powder collection.
  • Rear lower extraction duct connection.
  • Outlet ducting Ø180mm approx.

Three Stages of Powder Coating

Powder coating booths and guns only make up the application stage of a manual powder coating line, with pre-treatment cleaning and heat curing stages playing critical roles in achieving a flawless and adhered finish.

In the pre-treatment stage to clean the components of dust, oils and debris, a clean finish can be achieved with various cleaning machine methods from multistage ultrasonic cycles to spray washers. As long as the components are clean and dry, the component is ready for application.

To treat the powder coating layer so it becomes the strong, durable layer powder coating is known for, it needs to be cured in an industrial curing oven, resulting in the powder melting and becoming one solid bonded film.

pdf icon Print / Download Spray Coating Booth Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
