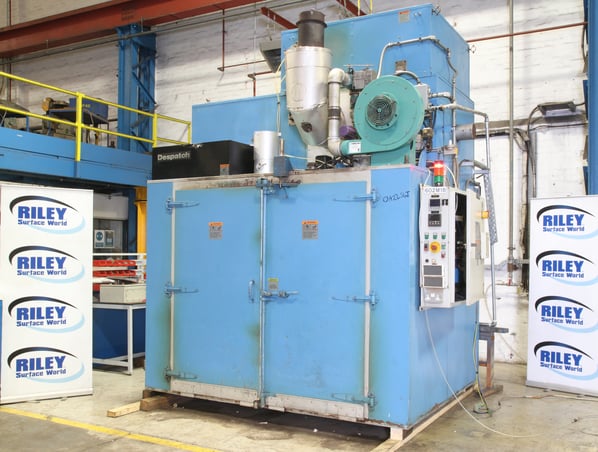

Despatch Heavy Duty Industrial Indirect Gas Fired Oven

Lot ID

OA2256J

Manufacturer

Despatch

Model

Special PWC 3-21

Serial

156888

Condition

Good Condition, Seen powered at RSW

Internal Size (WxDxH mm) [?]

1820 x 1800 x 1760

Max Temp

260 °C

Other Info

Complete with Gas Safe Certificate @ RSW

Location

Warehouse Clearance

Weight (kgs)

3000

External Dimensions (WxDxH mm) [?]

2880 x 2160 x 3450

Delivery

Your delivery options

Description

The Despatch walk-in, trolley-in oven can accommodate a variety of specific product and process needs. Includes water cooled heat exchanger work chamber rapid cooling facility

• The Despatch Ovens feature a sturdy, welded, double-wall construction, five inches of glass fiber insulation, and heavy-duty high temperature door gaskets. Aluminised steel interior minimises corrosion problems and provides long life.
• Despatch’s design, manufacturing, quality, and innovation ensures industrial ruggedness, excellent process control, and dependable operation. The ovens are ideal for applications involving tight tolerances, multiple profiles and close control.
• The Ovens are specifically designed to meet NFPA 86 requirements for applications that include solvents, volatiles or large amounts of moisture removal. These class A ovens are complete with fitted explosion pressure relief panels, purge timers, and matched exhaust fan.
• Horizontal airflow for ultimate temperature uniformity.
• The ovens use multi vent horizontal recirculating airflow to ensure uniform temperatures throughout the oven. A high-volume fan circulates air through the aluminised steel walls to create a constant airflow through all sections of the oven.
• Controls are easy to use yet have comprehensive features

Typical applications include:

• Indirect gas fired.
• Should the processes require rapid cooling.
• Aging
• Bonding
• Curing
• Drying
• Baking
• Heat treating
• Annealing
• Stress-relieving

Eurotherm 3504

• Programmable controls are easy to use for both simple and complex applications.
• Single and multiple-temperature applications begin with the push of a button.
• Multiple temperature operations are controlled by up to eight programs, with eight ramp and soak segments in each program.
• Eye level controls are easy to read and operate with a second policeman controller to monitor the process.

Special feature

• Reverse flow controlled cooling.
• Indirect gas fired.
• Built in above the oven is a radiator pack that accepts chilled water to offer a controlled rapid cooling facility to offer shorter process times and controlled temperature profiles.
• Each oven will be supplied fully assembled and wired to minimise installation time. Once the oven is in place, simply make the electrical power, flue and gas connections and away you go.

Physical Specifications

• Chamber size 1830mm x 1830mm x 1830mm (width x depth x height
• Capacity in cubic feet (Liters) 216 (6116)
• Overall size 2950mm x 2150mm x 3450mm (width x depth x height
• Approximate net weight 3000kg

Functional Specifications

• Minimum operating temp above ambient 20°C
• Maximum operating temperature 260°C

Standard Features

• Eurotherm 3504 Programmable control with large LCD display
• High-limit alarm
• Test access port
• Aluminised steel interior
• High volume recirculating fan provides fast, uniform heating - saving process time and improves product quality
• Insulated floor with trolley tracks
• Adjustable louvers
• Proportioning indirect radiant tube 300,000 BTU 100kW gas fired heater
• CE compliant

Supply specifications

• 300,000 btu burner (100kW).
• Including gas safe certificate.
• Natural gas supply @1-2psi pressure
• Electrical supply 415/3ph/50hz @ full load 16.8 Amps

Print / Download Despatch Heavy Duty Industrial Indirect Gas Fired Oven Datasheet

Additional files

Gas Safe Certificate

Auction Lots Descriptions and photographs are provided in good faith but may not be correct. It is the Customer's responsibility to ensure that the machinery is fit for the purpose for which it is purchased and safe for the purpose of use at work via physical inspection. All sales are deemed to be 'as inspected' and 'as is, in situ' even if the customer has waived the right to inspect.
