Machines & equipment for sale

Worthington Simpson Pumps and Control Panel

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Good Condition
Stock No
MY626
Model
40 WJE 200
Serial
F068865
New or Used
Used (Second Hand)
Capacity
40M3 Hr : head 200KPa
Process Application
Fluid Movement
Other Info
Max suck pressure 2.75 Bar
Location
Our Central Warehouse, Aldridge, UK

Description

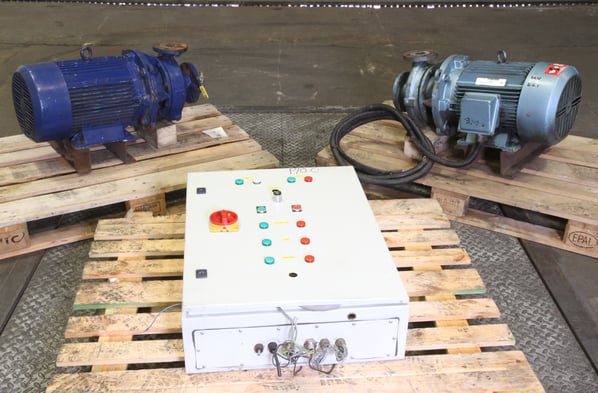

Control Panel and Centrifugal pumps and motors.

Worthington Simpson close coupled end suction pump types WB, WJ & WJE form part of Flowserve’s D Line range of pumps, a range based on modular components which use casings and impellers from the frame mounted range, designed to ISO standards.

This modular concept ensures maximum interchangeability of parts and the subsequent low inventory costs. WB, WJ & WJE pump units feature a single DIN 24960 mechanical seal as standard.

Motor details;

N = 2910 : Amps = 21.5 : 11 Kw : 3 phase, 415 Volts 50 Hz.

Pump details;

Inlet flange is 185mm diameter with 4 equally spaced, 3/4" diameter holes on a PCD of 145mm

Outlet flange is 150mm diameter with 4 equally spaced, 3/4"diameter holes on a pcd of 110mm.





pdf icon Print / Download Worthington Simpson Pumps and Control Panel Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
