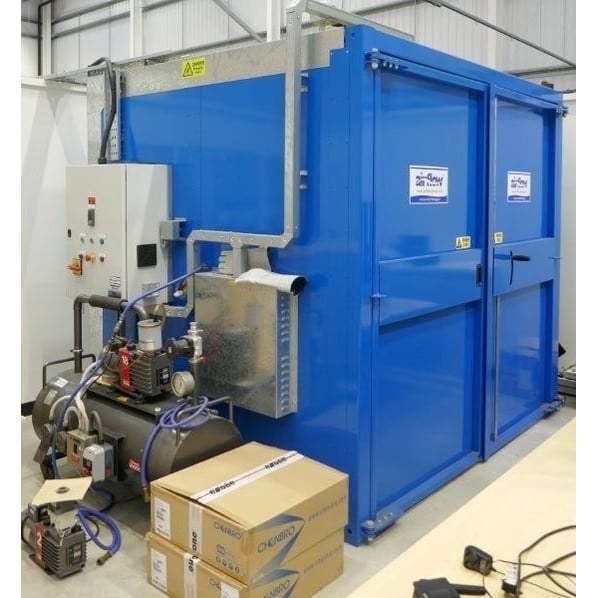

Airflow Group Challenger 10 225°C Composite Box Oven - 8m³ Chamber

- Stock No
- OF2704J
- Manufacturer
- Airflow Group
- Model
- Challenger 10
- Year of Manufacture
- 2022
- Condition
- From a working environment, Excellent Condition, Current Model
- Internal Size (WxDxH mm) [?]
- 2000 x 2000 x 2000
- Max Temp
- 225°C
- Other Info
- Ex Aerospace Composites Industry
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 1400kg
- External Dimensions (WxDxH mm) [?]
- 2600 x 2400 x 2700
- Delivery Your delivery options
Description
Previously used in the aerospace composites industry, the Airflow Group Challenger 10 is an industrial box oven particularly suited to composite curing, including prepreg processing. With an 8m³ chamber, a maximum operating temperature of 225°C and an included Edwards vacuum system, it offers a versatile solution for manufacturers seeking controlled thermal processing alongside equipment for vacuum assisted composite production.
General Description
The Challenger 10 uses a high volume, low pressure hot air circulation system to distribute heat throughout the chamber. Its 45kW heating elements work alongside a 2.2kW circulation fan, with ducting on both sides of the chamber directing air through multiple vents. Independent damper controls help balance airflow, supporting consistent heating across components and batch loads.
Beyond composite processing, this versatile oven is suitable for a range of industrial heating, drying and curing applications, including paint stoving, epoxy and polyester curing, lacquer drying and moisture removal. A Eurotherm programmable controller provides digital temperature control, while two large access doors facilitate loading and unloading. The chamber also incorporates a 150mm vent pipe for venting to atmosphere, and the mono-frame construction is designed to simplify relocation.
Specialist Composite Curing & Prepreg Processing
Designed for demanding manufacturing environments, the oven is particularly relevant to aerospace and other composite applications where prepreg materials require controlled heating and curing. Wall port connections allow vacuum lines to be connected to components or tooling during processing, while the included Edwards vacuum pump and receiver tank provide additional equipment for vacuum assisted manufacturing workflows. This combination offers potential for applications requiring both thermal processing and vacuum consolidation, subject to the specific material, tooling and cure cycle requirements.
Benefits
- Aerospace composites background: Previously used in the aerospace composites industry, making it particularly relevant to composite manufacturing applications.
- 8m³ chamber capacity: Internal dimensions of 2000 × 2000 × 2000mm provide space for larger components and batch processing.
- 225°C maximum operating temperature: Supports a variety of industrial heating, drying and curing requirements.
- 45kW heating capacity: Provides heat for demanding industrial processes.
- 2.2kW circulation fan: Supports continuous recirculation of heated air throughout the chamber.
- Ducted airflow system: Multiple vents and independent damper controls help distribute heat evenly around the chamber.
- Eurotherm programmable controller: Enables digital temperature management for repeatable processing.
- Vacuum wall port connections: Allow vacuum lines to be connected for compatible composite manufacturing processes.
- Edwards vacuum pump and receiver tank: Included to support vacuum-assisted workflows.
- Two large access doors: Provide convenient chamber access for loading and unloading.
- Atmospheric venting: Includes a 150mm diameter vent pipe.
- Mono-frame construction: Designed to simplify relocation and installation.
- Versatile industrial applications: Also suitable for paint stoving, epoxy and polyester curing, lacquer drying, moisture removal and other compatible heating processes.
Edwards Vacuum System
The oven is supplied with a single phase Edwards vacuum pump mounted above and connected to a vacuum receiver tank. The receiver provides a reserve volume to help stabilise operation and accommodate pressure fluctuations within the vacuum system.
The receiver tank includes:
- High and low vacuum gauges
- Condensate drain
- Evacuation ports
- On/off power switch mounted on the tank chassis
- Wheeled construction for convenient positioning
Together with the oven's vacuum wall port connections, this equipment provides additional flexibility for vacuum assisted composite manufacturing. The suitability of the system for a particular prepreg process should be verified against the required vacuum level, material specification and curing cycle.
Machine Specifications
- Manufacturer: Airflow Group
- Model: Challenger 10
- Chamber volume: 8m³
- Internal dimensions: 2000 × 2000 × 2000mm
- Maximum temperature: 225°C
- Heating elements: 45kW
- Circulation fan: 2.2kW
- Temperature control: Eurotherm programmable controller
- Chamber access: Two large doors
- Vent pipe: 150mm diameter
- Additional equipment: Single phase Edwards vacuum pump and vacuum receiver tank
- Vacuum connections: Wall port connections for compatible vacuum assisted processing
Print / Download Airflow Group Challenger 10 225°C Composite Box Oven - 8m³ Chamber Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
