Machines & equipment for sale

RDM Engineering Heated Spray Bake & Drying Room

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
26 April 2027 15:33 GMT while stocks last
Part of a Direct Site Clearance
Flash Sale - Surface Preparation & Blast Cleaning Machinery
Condition
From a working environment, Seen working by RSW, Good Condition
Location
Glasgow, Scotland, UK
Buy Now Add to Quote Book Appointment
Stock No
OF2685
Manufacturer
RDM Engineering
Model
Waffle Floor Blast Room
Year of Manufacture
2009
Condition
From a working environment, Seen working by RSW, Good Condition
Work Envelope (WxDxH mm) [?]
4000 x 4000 x 2500mm
Process Stages
2 stage coating application & drying
Location
Glasgow, Scotland, UK
External Dimensions (WxDxH mm) [?]
4420 x 5750 x 3760mm
Delivery
Your delivery options

Description

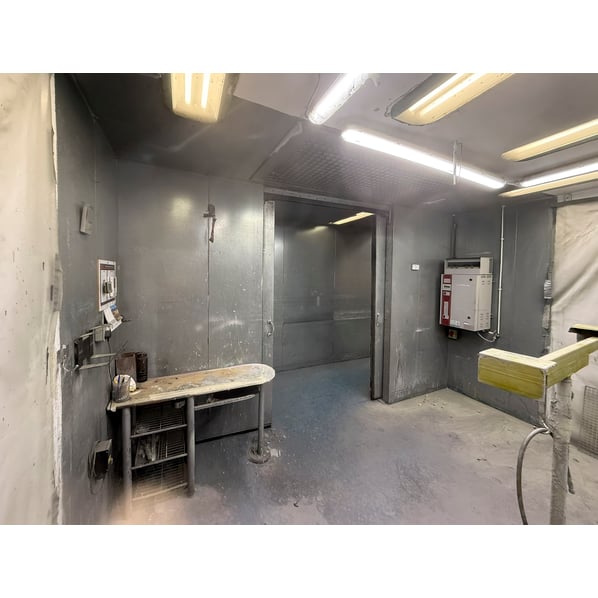

The RDM Engineering heated spray bake & drying room provides a versatile solution for component preparation, spray painting and coating drying within a single controlled environment. Designed to streamline the finishing process, it allows components to remain in place between spraying and drying, helping minimise handling and protect wet coatings for a high quality finish.

Suitable for specialist finishing applications, including automotive and motorsport environments, this spray bake room combines spraying and heated drying in one integrated workspace. Following the application of the coating, the room can be switched to bake mode, using controlled heat and ventilation to support the drying process. An automatic cooling stage allows the temperature to reduce at the end of the cycle before the operator returns.

The installation includes a Munters FA6™ evaporative humidifier and cooler, together with a box and Dravo heater to support the drying process.

Benefits

  • Combined spray and drying facility: Complete component preparation, painting and drying within one workspace.
  • Reduced component handling: Keeps parts in place between spraying and drying, helping minimise the risk of disturbing wet coatings.
  • Controlled heated drying: Bake mode introduces heat and ventilation to support the coating drying process.
  • Automated cooling cycle: Helps cool the room after the programmed cycle before operator re-entry.
  • Additional equipment: Supplied with a silencer and Munters FA6™ evaporative humidifier and cooler, with box and Dravo heater.

Industries That Use Spray Bake Rooms - Automotive & Motorsport

Spray bake rooms are commonly used in specialist automotive applications, including motorsport and Formula 1, where high quality finishes are essential. By keeping components in the same controlled environment throughout spraying and curing, they help minimise movement between process stages, reducing the risk of disturbing wet coatings and supporting a consistent, premium quality finish.

Machine Specifications

  • Manufacturer - RDM Engineering
  • Internal dimension - 4000 x 4000 x 2500mm
  • External dimensions - 4000 × 5500 × 3760mm
  • Door opening - 1666 × 2500mm
  • Service Corridor - 1400mm
  • Drying equipment - Munters FA6™ evaporative humidifier and cooler, with box and Dravo heater

 Includes professional disconnection & loading to suitable transport.

pdf icon Print / Download RDM Engineering Heated Spray Bake & Drying Room Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
