Machines & equipment for sale

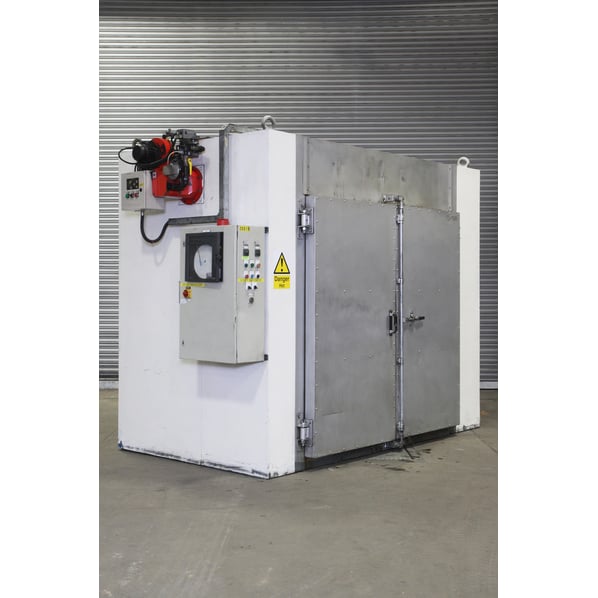

JLS (Redditch) Ltd 550°C Gas Fired Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
OF2670
Manufacturer
JLS (Redditch) Ltd
Model
Stress Relieving oven
Year of Manufacture
2000
Serial
99/4648
Condition
Seen working by RSW, Good Condition, Current Model
Internal Size (WxDxH mm) [?]
2000 x 1430 x 1840
Max Temp
650°C (upgraded)
Other Info
Extra Heavy Duty Industrial Oven
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3800
External Dimensions (WxDxH mm) [?]
4150 x 1930 x 2780
Delivery
Your delivery options

Description

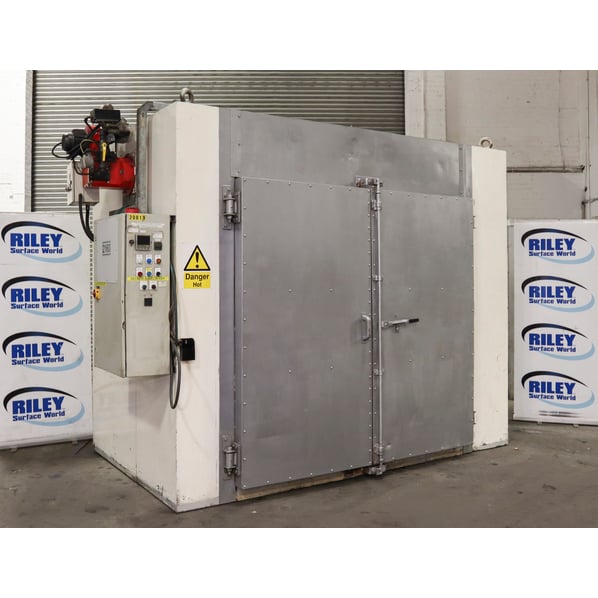

An upgraded and re-built JLS heavy duty 650°C oven. This JLS rebuilt oven comes with a powerful airflow system incorporating a low pressure, high volume horizontal air recirculating fan delivering uniform temperature distribution. Now fitted with a Nanodac controller and is calibrated.

JLS Ovens are robustly constructed from heavy gauge steel plate and rolled sections with a powerful airflow system incorporating a low pressure, high volume horizontal air- recirculating fan delivering uniform temperature distribution

The oven is configured to suit most applications including high temperature Drying, Curing, Stoving, Annealing, De-embrittlement, Stress relieving, Baking, Heat Treatments, Pre-Heating, and De-Coring etc.

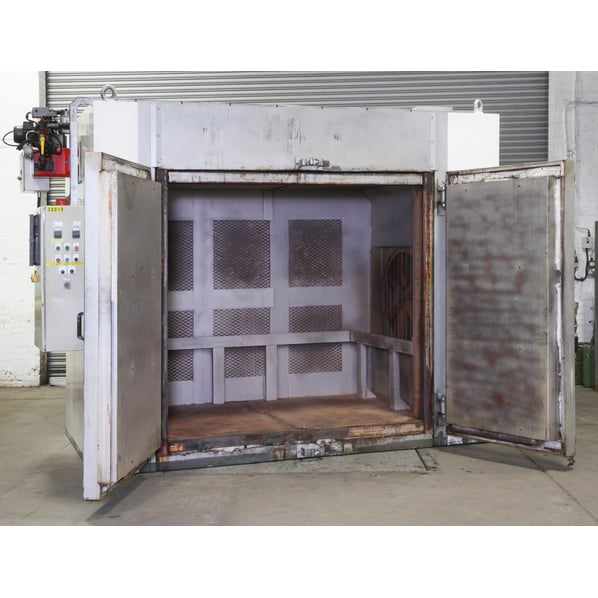

The front loading Oven is supplied with swing aside heavy duty hinged doors, and a robust insulated floor, making it suitable for a wide range of, industrial batch production requirements.

The design of the oven incorporates 6 rear and 1 roof mounted explosion relief panels and a fresh air intake that when used for a process that may produce either water vapour, solvents or other volatiles, these gases can be easily evacuated from the work chamber by opening the fresh air inlet to introduce cooler fresh air into the suction airflow. This can also be used as a means of controlled cooling.

Suitable for a wide range of industrial process applications such as:

Ovens for the Aerospace Industry

  • Solution and ageing treatment of aircraft components
  • Curing of aircraft composites
  • Stoving of high temperature coatings
  • Compliance with BAe, Rolls-Royce and Boeing specifications

Ovens for the Aluminium Industry

  • Solution and ageing treatments for contract heat treaters
  • Pre-heating billets
  • Annealing
  • Extrusion press die heating

Ovens for the Glass Industry

  • Annealing ovens
  • Stress relieving of glass components
  • Stress relieving of moulds

Ovens for the Finishing Industry

  • High temperature paint stoving
  • Drying
  • De-embrittlement

Ovens for the Electrical Industry

  • Motor winding burn-out
  • Pre-heat for shrink fitting

Ovens for the Foundry Ondustry

  • Core drying and mould drying
  • De-coring
  • Launder drying
  • Scrap drying

Features

  • Front loading twin doors.
  • Stainless Steel Lined including the floor.
  • Eurotherm proportional digital temperature controllers
  • Comtherm variable output burner for close temperature control
  • Process timer
  • Insulated floor
  • Chessel paper chart recorder with digital readout
  • Manual fresh air vent for the removal of volatile atmospheres
  • Dual explosion relief panels for use with potential explosive atmospheres
  • Internal anti bump support bars
  • High temperature insulation for heat treatment processes

Price new £90,000

pdf icon Print / Download JLS (Redditch) Ltd 550°C Gas Fired Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
