Vixen JW99 Top loading Spray Wash

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DF1623
Manufacturer
Vixen
Model
JW99
Year of Manufacture
2009
Serial
2268
Condition
Seen working by RSW, Good Condition
Work Envelope (WxDxH mm) [?]
950 x 270 x 400mm
Process Stages
Single Stage
Other Info
Hot detergent washing machine
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1700 x 1270 x 1130mm
Delivery
Your delivery options

Description

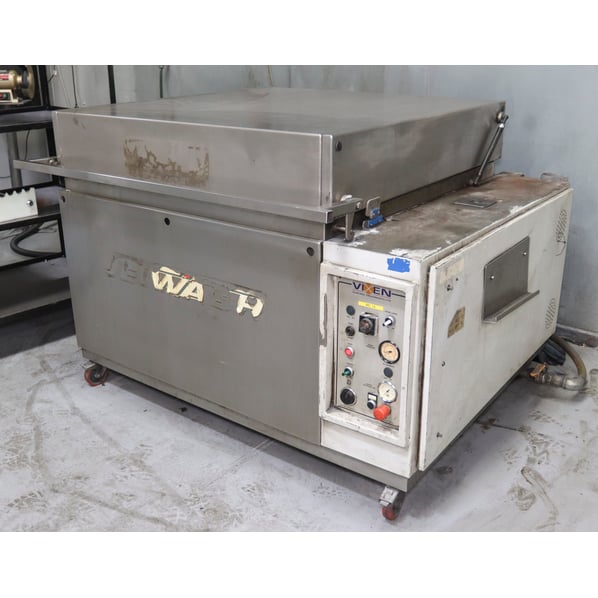

The Jetwash JW99 is a stainless steel lined cellular type rotary hot wash spray machine, which uses towns water and any number of available environmentally friendly detergents.

The machine is of a double skin construction with an 18mm injected cavity insulation gap offering maximum thermal insulation to the hot water tank and an extremely strong build rigidity.

Designed to automatically wash/degrease a wide variety of industrial and commercial components.

The operation is very simple, you just load the basket, close the lid and press start. The cycle is adjustable for both time and temperature and resets automatically each time the lid is opened at the end of the cycle.

The wash basket remains stationary while the spray boom revolves around it. This means that any delicate components will not get damaged by shock movements.

The inbuilt stainless steel pumps deliver over 150 litres of water every minute providing plenty of power to remove stubborn and difficult contamination from the components. This water is returned to the tank and is filtered to remove debris via an easily accessible collection filter basket.

The spray bars fully envelope the basket offering a full 360°C wash pattern. For ease of loading larger parts, the spray bars can be split in the middle and pushed aside to allow the parts to be loaded directly from overhead with a crane or forklift unit.

The wash cycle of most components are typically cleaned and flash dried within just a few minutes.

Features

  • All wetted parts fully stainless steel.
  • Insulated double skin construction.
  • Fully automatic.
  • Steam/fume extraction facility.

External dimensions - 1700mm x 1270mm x 1130mm
Height of machine with the lid fully open - 2340mm
Electrical supply - 415 Volt 3ph 25 Amps

pdf icon Print / Download Vixen JW99 Top loading Spray Wash Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
