Barlow Whitney Heavy Duty 300°C Industrial Box Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OF2657
Manufacturer
Barlow Whitney
Model
WB-E450
Year of Manufacture
REF by ML
Serial
S13890314
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
1820 x 1800 x 1820 (5800 Litres)
Max Temp
300°C
Other Info
ATEX Rated Explosion Relief Panels
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1400
External Dimensions (WxDxH mm) [?]
2670 x 2150 x 2510
Delivery
Your delivery options

Description

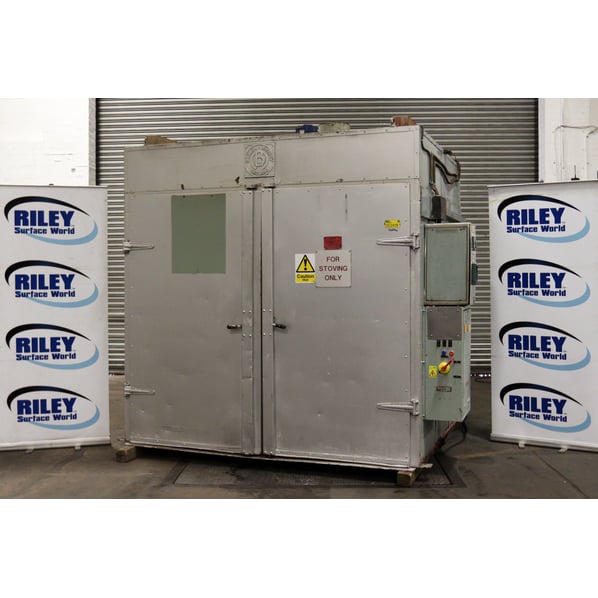

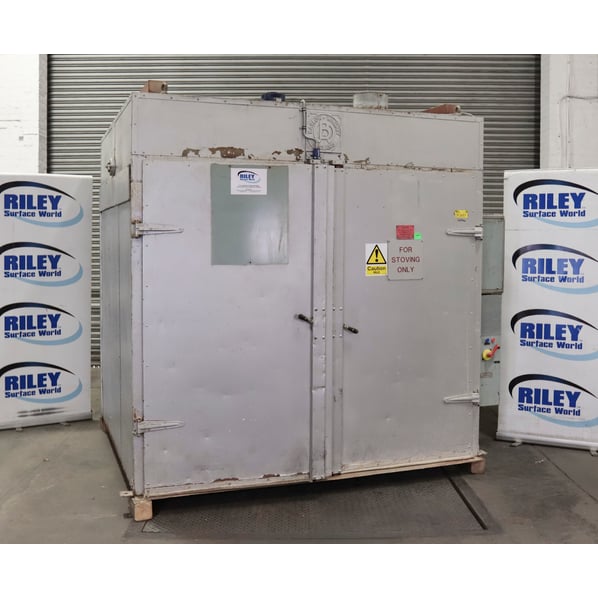

An excellent example of a large Barlow Whitney box oven (part of the Almore Group), these large batch ovens are suitable for almost any application from simple drying processes to exacting metal treatments.

This would make an excellent addition for those processing larger batches or singular large items in a production environment.

Features

  • Maximum temp - 300°C
  • 36KW of heating power
  • Roof mounted air circulation fan for even hot air distribution within the heating chamber during processing
  • Robustly constructed twin locking doors with internal safety opening handles
  • Steel floor
  • Micro processor temp controller
  • Eurotherm 2704, multi-loop temperature controller
  • Eurotherm 2216E fitted
  • Eurotherm Chessell 5100V  data recorder
  • Manually operated vents
  • ATEX rated explosion relief panel
  • Cut off switch now fitted to the doors as an extra safety precaution

Possible Application

  • Stress relieving
  • De-embrittling
  • Tempering
  • Pre-heating of ferrous/non-ferrous/plastic/wood/glass substrates
  • Curing
  • Stoving

Electrical Details

  • 415 Volt
  • 3ph
  • 50Hz
  • Heater load 36kW

pdf icon Print / Download Barlow Whitney Heavy Duty 300°C Industrial Box Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
