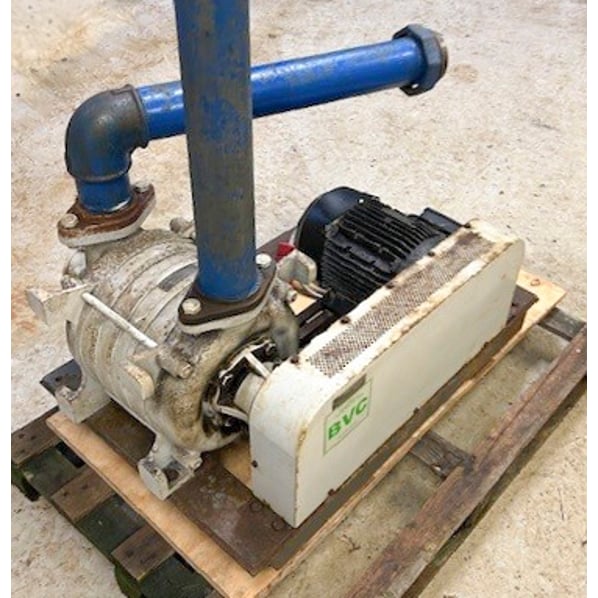

BVC (Quirepace) S6 Air Blower

BVC S6 Air Blower

Direct From Site Clearance

Price [?]: Please call on +44 (0) 1922 45 8000
Buyer's Premium [?]: 10% BP will be added to your invoice
Part of a Direct Site Clearance: Derby Plating Services – Decommissioning Phase of Clearance
Condition: From a working environment, Good Condition

Add to Quote Book Appointment

Stock No: DPS170
Manufacturer: BVC (Quirepace)
Model: S6/66
Condition: From a working environment, Good Condition
Capacity: Up to a Max. of 356CFM // 605M³/Hr
Process Application: Supply of warm, dry non-pulsating Air
Location: Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]: 953mm x 673mm x 500mm
Delivery

Description

The BVC Quirepace S6/66 Air Blower is a robust British-engineered blower designed to deliver a consistent supply of warm, dry, non-pulsating air, with a maximum capacity of 356 CFM (605 m³/hr).

Built around a precision impeller and diffuser assembly driven by a belt-and-pulley system, it ensures smooth, efficient airflow performance across a wide range of industrial applications. Supplied as a fully motorised unit with an IE3 high-efficiency motor mounted on a bed plate with belt guard and anti-vibration mounts, the S6/66 offers reliable operation and easy integration into existing systems.

Specification

Shaft - Steel
Intermediate rings - Aluminium
End covers - Aluminium
Bearings - Self-aligning ball bearing (NDE), roller bearing (DE)
Belt drive - Multi-vee belt taper lock pulleys
Number of stages - 6
Nominal port size - Flange with 3” BSP parallel thread
Inlet & outlet port - Certical as standard
Lubrication - Grease with restrictors to bearing housings
Motor - 4kW (S6) induction 2 pole TEFV to IP55, 380–415V / 3ph / 50Hz (suitable for star/delta starting)
Normal speed - 6,600 rpm
Weight - Motor unit 137kg & bare shaft 49kg
