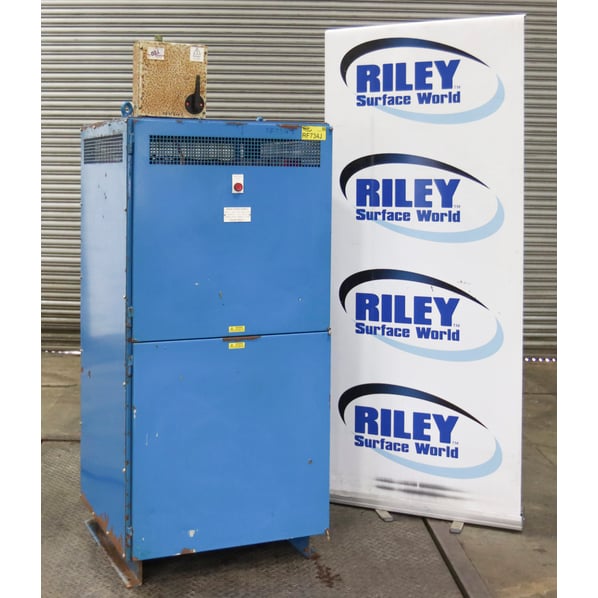

Drake Power Systems 16V DC, 1000A Rectifier

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 850 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
RF734J
Manufacturer
Drake Power Systems
Model
Saturable Reactor Control
Serial
3491 F
Condition
From a working environment
Voltage
16
Amps
1000
Other Info
Silicone Diode
Location
Warehouse Clearance
Weight (kgs)
475
External Dimensions (WxDxH mm) [?]
780 x 800 x 2000mm
Delivery
Your delivery options

Description

Drake Power Systems Saturable Reactor (transductor) controlled silicon diode, full wave bridge rectification, DC rectifier.

Rectifier Type: Silicon diode, full wave rectification, bridge connected, 6 Pulse configuration

Originally working on a Barrel Plating Line in Birmingham.

Features

  • Control - Motorised stepless control 0-100%.
  • Output DC - 1000A 16V DC air cooled silicone diode
  • Input AC - 415-440VAC 3 Phase 50/60Hz +\- 10%.
  • Control Supply - 240VAC 1 Phase (derived internally) TBC
  • Input Power - 29Amps @380/440 3 phase 50Hz
  • Dimensions - 780mm x 80mm0 x 2000mm
  • Weight - 475kg

Operation

General Construction: Consisting of a standard floor mounted steel enclosure with hinged opening front doors for ease of access. Enclosure fitted with channel under-base for ease of moving. All transformers and electronic equipment suitably protected against corrosive environments.

Operating Conditions: Indoor use in up to a 40°C ambient temperature.

DC Output Connections: DC Heavy duty aluminium busbars.

Ripple: Standard Rectifiers  5% or better over the full range of operation.
