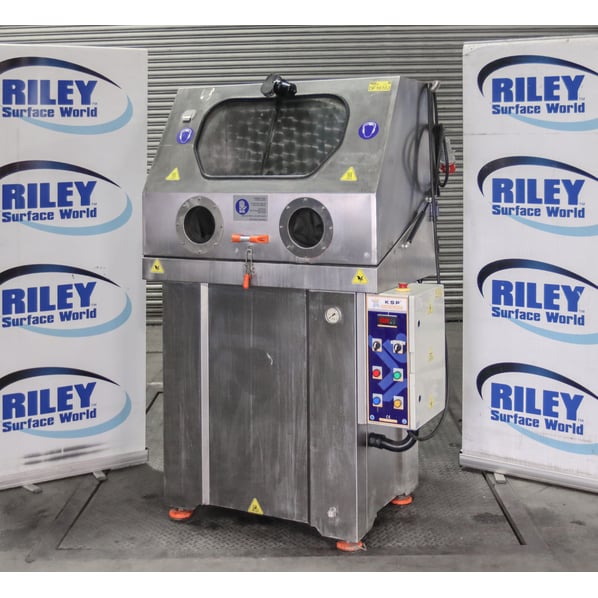

KSP Machine High Pressure Wash Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
DF1610J
Manufacturer
KSP Machine
Model
HPWM1100-AC
Year of Manufacture
02/2020
Serial
1401
Condition
From a working environment, Good Condition, Current Model, Seen powered at RSW
Work Envelope (WxDxH mm) [?]
1100 x 700mm
Process Stages
Single Stage
Other Info
Heater capacity 4.5kw
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
230
External Dimensions (WxDxH mm) [?]
1340 x 800 x 1900
Delivery
Your delivery options

Description

HPWM Series High Pressure Washing Cabinet are designed to wash small and complex parts with high pressure, heated water. They are foot switch operated which provides the operator with a much easier and controlled washing experience.

Engineered for powerful, efficient performance, the system combines high water flow with high pump pressure to deliver outstanding cleaning results. The use of heated water further enhances the cleaning effect, while the insulated tank design reduces heat loss and improves energy efficiency.

Bright internal lighting and a built-in window cleaning wiper provide clear visibility inside the wash cabinet, giving operators greater control during the cleaning cycle.

An integrated air gun inside the cabinet assists with post wash drying, helping to speed up processing and improve overall workflow.

The machine features a filtration system with separate filters positioned at the tank inlet and tank outlet. This design extending the lifespan of the machine water and detergent usage while maintaining consistent cleaning performance. All filters are washable and reusable, reducing running costs.

Operators maintain full process control via clear temperature indicators and a manometer, allowing precise monitoring of water temperature during operation.

Specification

  • Stainless steel body & filtration system.
  • Developed to save water, detergent and energy.
  • Minimum water consumption by closed circuit water cycling system.
  • Heated water (solution) dispensed through washing gun to the part.
  • Internal lighting.
  • Viewing window with wiper for better visibility.
  • High user safety on pneumatic pistons.
  • A water level sensor is used to protect the pumps and heaters against dry running.
  • Heating elements are made of special material incoly alloy, 4.5kW.
  • Lid safety system & mechanical door locking system.
  • European Electrical and Technical Components.
  • High-performance and reliable European Pumps. (1.1kW // 1.5Hp @ 9 Litres/Min.)

pdf icon Print / Download KSP Machine High Pressure Wash Cabinet Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
