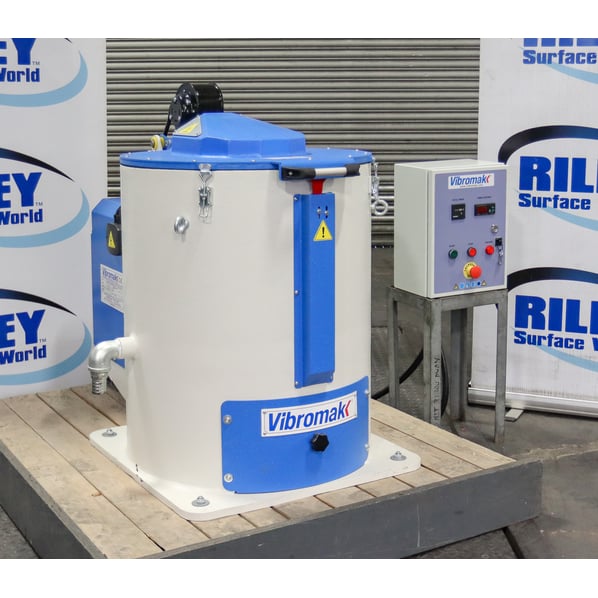

Vibromak 75kg Centrifugal Dryer

New

Price [?]
Please call on +44 (0) 1922 45 8000
Guarantee
1 year manufacturer guarantee
Availability:
Available subject to build time
Contact Us
Stock No
NEW170
Manufacturer
Vibromak
Model
VKSK 70
Capacity
40 Litres : 75kg Max Load
Type
Centrifugal Drying
Other Info
Stainless Steel Basket : Brake Motor
Weight (kgs)
240
External Dimensions (WxDxH mm) [?]
860 x 1200 x 1700mm (Lid Open)
Delivery
Your delivery options

Description

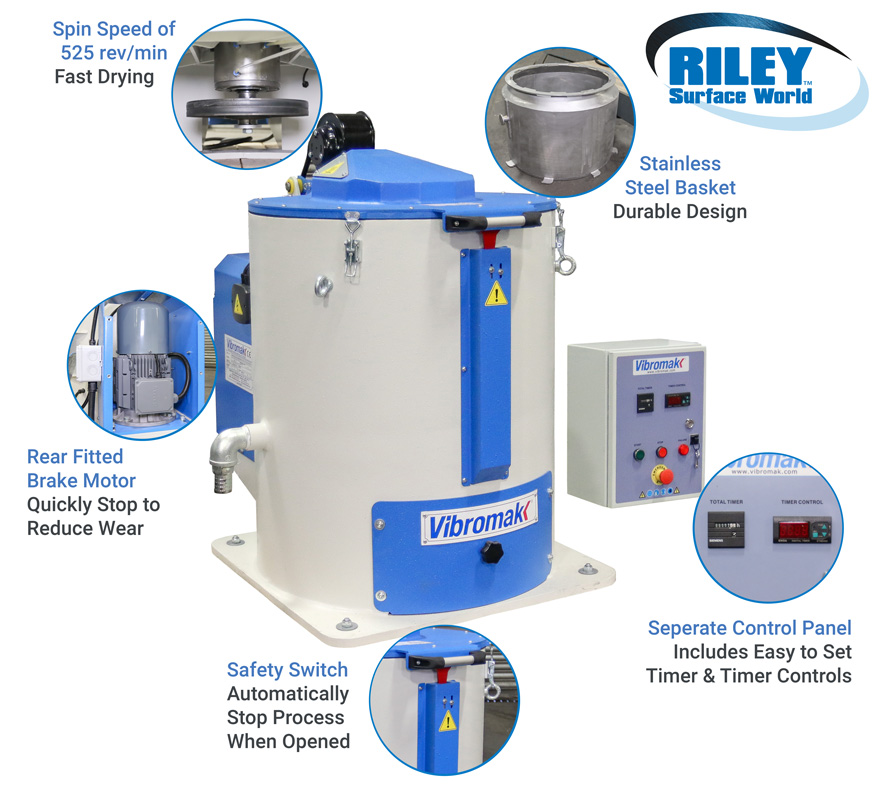

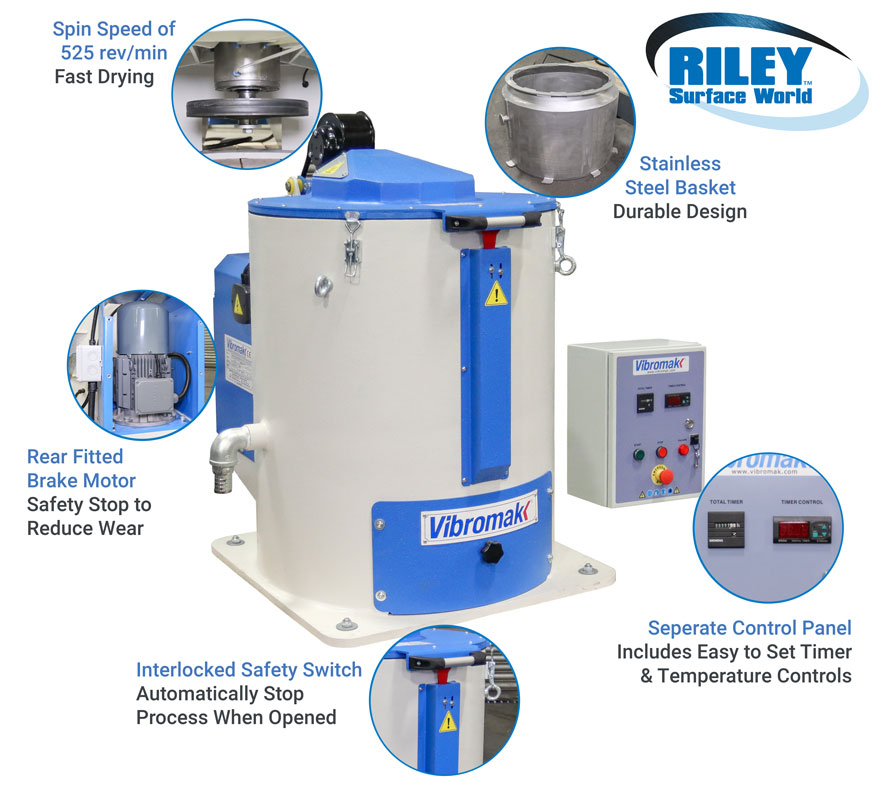

A brand-new centrifugal parts dryer designed for fast, efficient drying - featuring a perforated basket within a 525 rev/min rotating drum and a powerful lid mounted fan that circulates hot air through the load for rapid, even results. Most appropriate for small parts being processed in bulk.

Why Choose Centrifugal Drying?

Drying small parts in convection dryers can be inefficient where parts are closely packed and air cannot freely flow between them. Centrifugal drying overcomes those obstacles and speeds up production by drying two ways.

  • Centrifugal force from the spinning action of the basket "throws off" excess water, oils, or other liquids
  • At the same time, a turbine fan mounted below the basket creates a powerful suction that pulls air through the parts load for added drying power.

This double-drying action assures fast drying and reduces the scarring and marring frequently responsible for costly rejects. In most cases, producing spot-free, moisture-free parts in under 60 seconds.

A brand-new centrifugal parts dryer designed for fast, efficient drying - featuring a perforated basket within a 525 rev/min rotating drum and a powerful lid-mounted fan that circulates hot air through the load for rapid, even results.

Specification

  • External dimensions (lid open) - 860mm x 1200mm x 1700mm
  • Spin speed - 525 rev/min with brake motor
  • Approx. basket size - 500mm x 375mm
  • Working capacity - 40 Litres
  • Weight capacity - 75kg
  • Motor - 3Hp // 2.2kW
  • Fan heater - 2000 Watts
  • Stainless steel basket
  • Lid safety switch
  • Digital process timer

Optional

  • A 45kg Load option is available
  • An optional manual hoist is available (shown in pictures above).

What are Centrifugal Dryers?

Centrifugal Dryers machines are ideal for the drying of small parts which need to be dried fast and efficiently.

The process consists of a removable perforated basket which the wet parts are loaded into. A lockable lid encloses the parts whilst the basket is rotated at high speed. Hot air is passed into the basket to raise the temperature of the parts to ensure they are fully dried. Water which has adhered to the parts is spun off the parts due to the high centrifugal force produced and is removed from the machine through a drain located in the base of the machine.

Safety is ensured by fully interlocked access lid, braked motor drive and process timer.





pdf icon Print / Download Vibromak 75kg Centrifugal Dryer Datasheet
