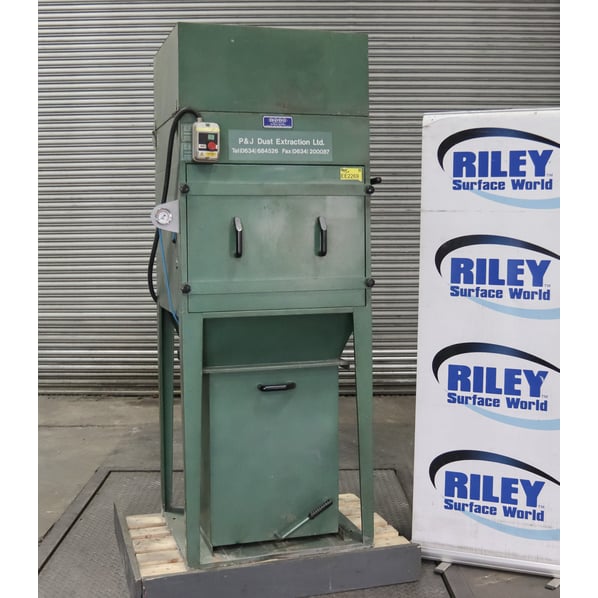

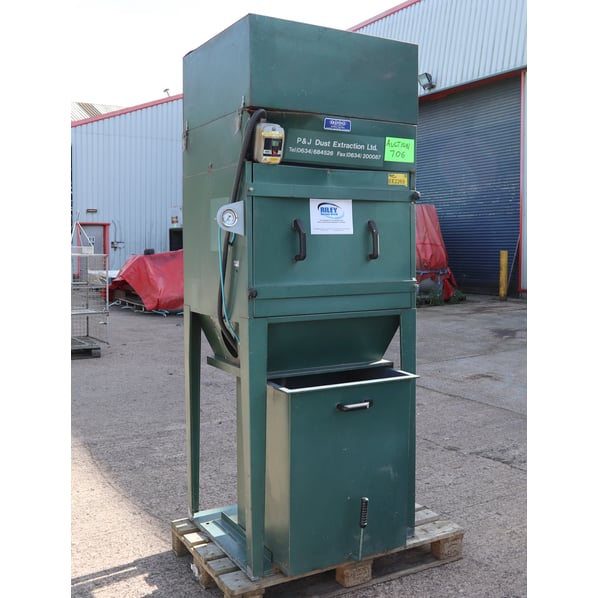

Filtex FX65 Self Contained Dust Extractor with Explosion Relief Panel

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance - Now closes 14th & 15th October

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
EE2269
Manufacturer
Filtex
Model
FX65
Condition
Good Condition, Seen powered at RSW
Approx Duty CFM / M³/Hr
500 // 850
Filter Area ft² / m²
65 // 6
Other Info
Explosion Relief Panel
Location
Warehouse Clearance - Now closes 14th & 15th October
External Dimensions (WxDxH mm) [?]
1050 x 900 x 2260mm
Delivery
Your delivery options

Description

This second hand FX style dust extractor with 1.5kW // 2Hp extraction fan is an extremely versatile fine dust filter, capable of handling numerous dust types over a wide range of applications.

Note Damage on pictures

A completely self-contained dust collector, with integral fan and acoustic attenuator, the unit uses high efficiency envelope filter elements to cope with fine and light dusts. This unit is designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes.

With a filter performance enabling the recirculation (in some circumstance) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air. The above design duties are based on an 8:1 cloth to air ratio. Polyester needlefelt filter media is included as standard. Other filter medias are available.

Specifications

  • Fan rating for course dust - 1020m3/h @ 1750pa
  • Fan rating for medium dust - 765m3/h @ 1750pa
  • Fan rating fine dust - 510m3/h @ 1750pa
  • Filter cloth area - approx. 65ft² // 6m²
  • Motor power - 1.5kW // 2Hp
  • Large dust collection bucket - 235 Litres
  • Explosion relief panel
  • Manual bag shaker
  • 9 Filter bags - approx. 600 x 500 each. (P & J filters ref No 94038)
