Semi-Automatic Acid Zinc Plating Line

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Derby Plating Services - Factory Clearance & Business Opportunity
Stock No
DPS800
Location
Our Central Warehouse, Aldridge, UK
Delivery
Your delivery options

Description

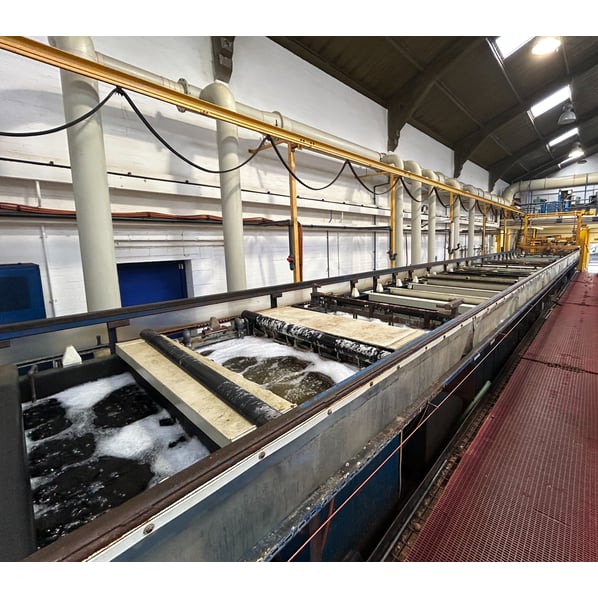

This 23-stage semi-automatic acid zinc plating line features a 6’ wide x 4’ high x 2’ deep process area, designed for efficient and consistent metal finishing. Built for reliability and precision, it delivers high-quality zinc coatings across multiple stages, making it ideal for industrial-scale plating operations.

  • Tank cross section 6’ wide x 4’ high x 2' wide generally (in direction of travel).
  • 23 off freestanding mild steel tanks with linings as per process schedule.
  • 1 off semi-automatic transporter 250kg SWL (purchased new from Jacquet Weston in 2015)
  • 1 off runway system with parallel down shop transporter rails fixed to tank mounted support brackets.
  • 2 off acid zinc plating stations.
  • 3 off rectifiers.
  • 1 set filter pumps.
  • 6 off tanks fitted with fume extraction.
  • 8 off process tank heating systems.
  • 1 set interconnecting pipework services for drainage, water, air etc.
  • 1 set interconnecting electrical services for transporter, process heating etc.

pdf icon Print / Download Semi-Automatic Acid Zinc Plating Line Datasheet

Additional files

Acid Zinc Line Process Schedule

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
