JLS (Redditch) Ltd Horizontal Air Flow Industrial Box Oven

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
18 December 2025 12:00 GMT while stocks last
Part of a Direct Site Clearance
World Leading Filtex Dust Extractor Clearance
Condition
From a working environment
Buy Now Add to Quote Book Appointment
Stock No
OE2637
Manufacturer
JLS (Redditch) Ltd
Model
Horizontal Air Flow Box Oven
Condition
From a working environment
Internal Size (WxDxH mm) [?]
1300 x 2000 x 2000mm
Other Info
Explosion Relief Panels
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2750 x 2220 x 2550mm
Delivery
Your delivery options

Description

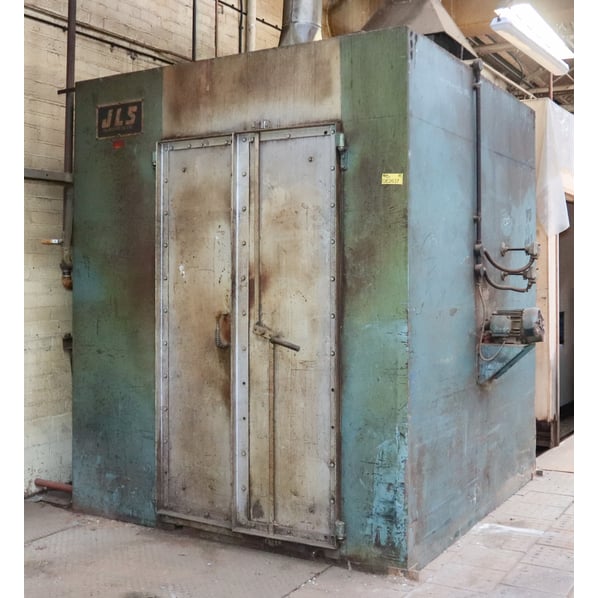

JLS double door forced convection type electric treatments and curing oven, equipped with a powerful high volume, low pressure air recirculation fan for horizonal air flow. This model is intended to provide rapid heating with high thermal transfer to the chamber contents and high uniformity within the chamber.

Dimensions

  • Internal dimensions - 1300mm x 2000mm x 2000mm
  • External dimensions - 2750mm x 2220mm x 2550mm
  • Trolley - 900mm x 2000mm x 830mm

Heavy Duty Applications

  • Composites
  • Aluminum aging
  • High temp coatings
  • Heat treating
  • And other demanding high uniformity applications

Features

  • Maximum operating temperature: TBC
  • Temperature range: 100+ TBC
  • Ø660mm air circulation fan driven by a 2.2kW motor. (TBC)
  • Digital programmable temperature controller.
  • Eurotherm over temperature controller.
  • Traditional rugged design of robust construction.
  • Air-circulation using horizontal axial fan.
  • 415Volts, 3phase, 50 Hz
  • Exceptional temperature uniformity throughout the working chamber.

Common Heat Treatments That Use Industrial Ovens & Furnaces

Heat treatment is a controlled process of heating and cooling materials in order to improve its properties, performance, and strength typically made up of three main steps. Firstly heating the metal to a specific temperature, soaking or maintaining the specific temperature for a certain amount of time, and cooling to a suitable rate following prescribed methods.

There are seven main techniques used for the heat treatment of materials, and all affect material in different way. These techniques are:

  1. Normalising
  2. Annealing
  3. Tempering
  4. Hardening
  5. Ageing
  6. Stress Relieving
  7. Carburisation

Purpose of Airflow in Ovens

A popular feature among our range of industrial and laboratory ovens, air circulation is essential for many heat treatments and processes, but it isn’t necessary for all. Seen most typically in high precision ovens for improved temperature accuracy, installing an air circulation system in an oven will distribute the heated air around the oven for a tighter temperature uniformity inside the chamber.

pdf icon Print / Download JLS (Redditch) Ltd Horizontal Air Flow Industrial Box Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
