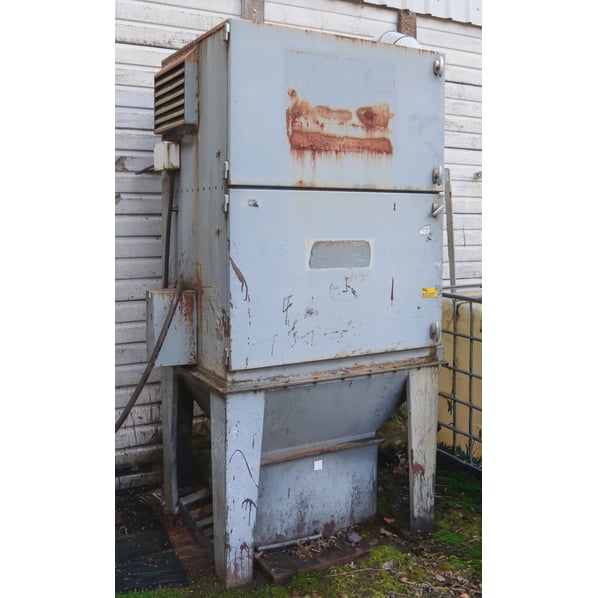

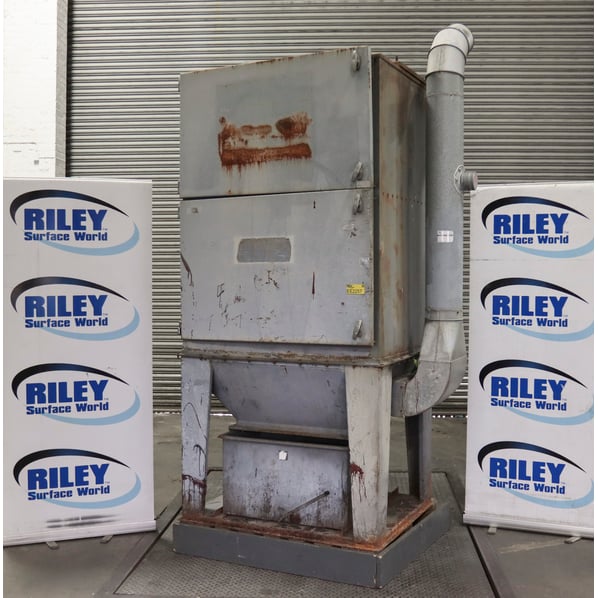

Filtex Dust Extractor with Explosion Relief Panel

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12% BP will be added to your invoice
Decommissioning,
Moving & Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
EE2257
Manufacturer
Filtex
Model
FX250
Year of Manufacture
c.1996
Condition
From a working environment
Approx Duty CFM / M³/Hr
2000CFM @ 7"swg // 3400m3/h @ 178mm
Filter Area ft² / m²
250 // 25
Other Info
5.5kw, 7.5HP, Explosion Relief Panel
Location
Warehouse Clearance
Weight (kgs)
415
External Dimensions (WxDxH mm) [?]
1700 x 1080 x 3400mm
Delivery
Your delivery options

Description

Upgrade your dust extraction process with this compact, self-contained FX 250 H unit, complete with fans and filter media for automatic or manual cleaning and collection. Powered by a 5.5 kW / 7.5 Hp motor, this versatile fine dust filter handles a wide range of dust types across multiple applications and includes a built-in explosion relief panel.

The FX 250 range are self-contained, high efficiency, envelope type units of compact design. They incorporate fan, motor and filter assemblies with mechanically operated shaking mechanisms and are designed to accept combinations of fan volume/cloth area to meet the varying applications in industry.

Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or filter.

This unit has been produced with the additional features of a pre-separation chamber to help separate light dust from the air-stream before they make contact with the filter bags.

The automatic electrical shaking mechanism control unit consists of contactors and time delay relays, so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and reset.

The FX filter performance enables the recirculation (in some circumstance) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

Technical Specifications

  • Capacity 2000cfm @ 7" swg // 5100m³/hr @178mm
  • Overall dimensions - 1700mm x 1080mm x 3400mm
  • Weight - 415kg
  • Fan size - 5.5kW // 7.5Hp
  • Explosion relief panel
  • Bin capacity - 4.6ft³ // 130 litres
  • Noise level - 76dB(A)

The above design duties are based on an 8:1 cloth to air ratio. Polyester needlefelt filter media is included as standard throughout our range. Other filter medias are available.
