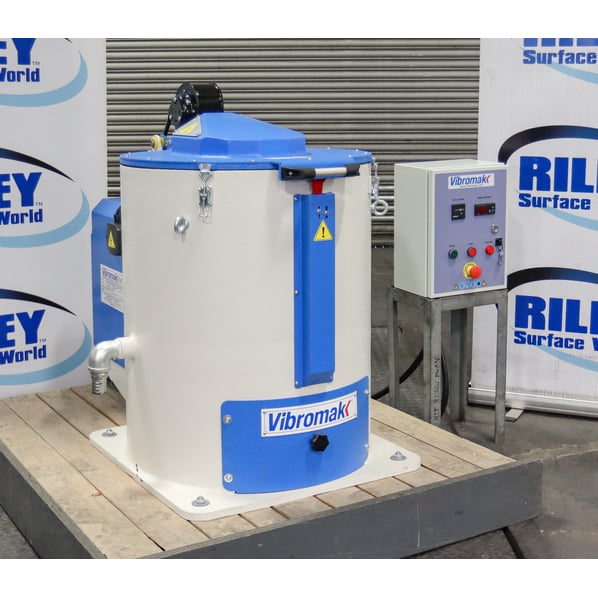

Vibromak 70kg Centrifugal Dryer

Stock No
VE2234
Manufacturer
Vibromak
Model
VKSK 75
Year of Manufacture
2025
Serial
5202090560-258
Condition
Brand New, Unused, Current Model, Seen powered at RSW
Capacity
40 Litres : 70Kg Max Load
Type
Centrifugal Drying
Other Info
Stainless Steel Basket : Brake Motor
Weight (kgs)
240
External Dimensions (WxDxH mm) [?]
860 x 1200 x 1700mm (Lid Open)
Delivery
Your delivery options

Description

A brand-new centrifugal parts dryer designed for fast, efficient drying - featuring a perforated basket within a 525 rev/min rotating drum and a powerful lid-mounted fan that circulates hot air through the load for rapid, even results. Most appropriate for small parts being processed in bulk.

Due to the close proximity of the parts and resistance they offer to free air flow, these applications often present challenges to normal convection dryers.

Centrifugal Drying

Overcomes those obstacles and speeds up production by drying two ways. Centrifugal force from the spinning action of the basket "throws off" excess water, oils, or other liquids. At the same time, a turbine fan mounted below the basket creates a powerful suction that pulls air through the parts load for added drying power. This double-drying action assures fast drying and reduces the scarring and marring frequently responsible for costly rejects. In most cases, producing spot-free, moisture-free parts in under 60 seconds.

Specification

  • External dimensions (lid open) - 860mm x 1200mm x 1700mm
  • Spin speed - 525 rev/min with brake motor
  • Approx. basket size - 500mm x 375mm
  • Working capacity - 40 Litres
  • Weight capacity - 70kg
  • Motor - 3Hp // 2.2kW
  • Fan heater - 2000 Watts
  • Stainless steel basket
  • Lid safety switch
  • Digital process timer

Optional Hoist

Images 23 and 24 show an optional manual hoist which is available. This hoist is manually operated and is only suitable for use with lighter loads as there is no locking mechanism.



pdf icon Print / Download Vibromak 70kg Centrifugal Dryer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
