Machines & equipment for sale

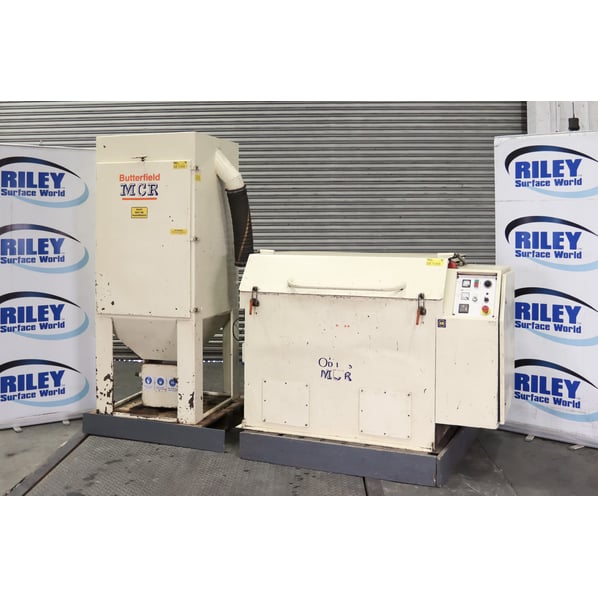

Odlings MCR Rotoblast RB100

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SE1068
Manufacturer
Odlings MCR
Model
Rotoblast 100
Year of Manufacture
10-2005
Serial
RB100R00603X67
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Ø570mm x 1100mm long 40mm2 Mesh
Work Handling Method
Manual Load Auto Barrel Rotation Blast
Other Info
Twin Blast Motors, Drum Rotation & Dusty
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
558
External Dimensions (WxDxH mm) [?]
1860 x 825 x 1105 + Dusty 1000x800x2000
Delivery
Your delivery options

Description

Odlings MCR's Rotoblasts cabinets are ideal for automatically blast cleaning metal parts using steel shot delivered by twin turbines. i.e. airless operation.

The Rotoblast shot blasting cabinets have been used in various industries for blast cleaning parts like turbos, transmission cases, scaffolding clips, callipers and brake shoes in the re-manufacturing industries.

The automatic shot blasting cabinet is well built and reliable, making them the ideal workhorse of many re-manufacturing workshops.

Cleaning cycles typically take between 10 - 30 minutes, once finished the components are left rust free and ready to be repaired or repainted.

Automatic shot blasting cabinets use steel shot from grades S110 up to S550. The components which need blast cleaning are loaded into the steel carry cage which then rotates slowly whilst the base mounted turbine impinges the shot on the work inside. The Rotoblast turbine is constructed from toughened manganese paddles which rotate at 2500 RPM.

When the steel shot hits the components inside the automatic shot blaster, it removes rust or paint. Over the course of a shot blasting cycle, this process is repeated thousands of times.

The Rotoblast cabinet is filtered by a 180CFM external dust extractor.

The end result of the shot blasting cycle is clean components which are ready to be re-painted, repaired or re-manufactured.

Mesh hole dimensions - 40 mm x 40 mm sq.

Key Features:

  • CE Certificated - Meets all current safety guidelines, several safety features are fitted.
  • Rubber lined interior - Reduces noise and damage to the unit and blasting media.
  • Tough Manganese shielded blast wheel.
  • Easy to use - Simple operation that requires no supervision whilst processing.
  • Safety -  interlocked Lid and thermal overloads for added protection.
  • 415 Volt, 14amp 50 Hz, 3 Phase.
  • 3kW.
  • Matched plug in, 240 Volt external dust extractor with 2 new sets of filter bags.

pdf icon Print / Download Odlings MCR Rotoblast RB100 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
