Machines & equipment for sale

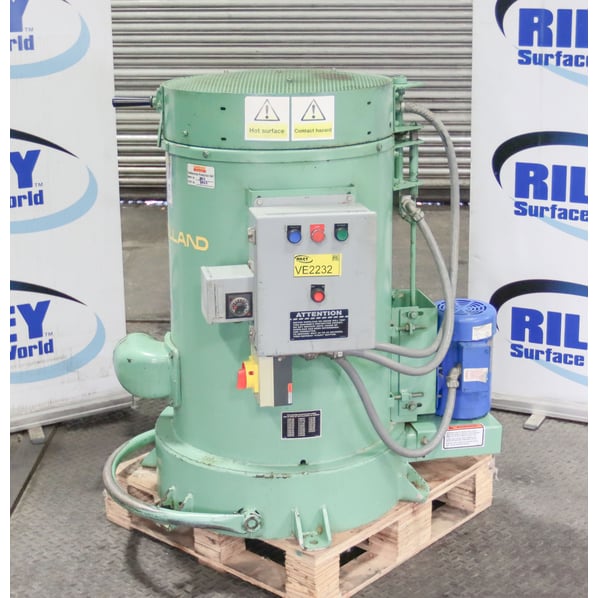

New Holland Forward / Reverse Centrifugal Dryer K-90

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
VE2232
Manufacturer
New Holland
Model
K-90
Serial
77022
Condition
From a working environment, Excellent Condition
Capacity
68 Kgs, 150Lbs
Type
Reversing spinning and drying
Other Info
Process Timer Fitted
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
279
External Dimensions (WxDxH mm) [?]
800 x 1000 x 1100mm
Delivery
Your delivery options

Description

Centrifugal dryers are most appropriate for small parts being processed in bulk. Due to the close proximity of the parts and resistance they offer to free air flow, these applications often present challenges to normal convection dryers.

Centrifugal drying

overcomes those obstacles and speeds up production by drying two ways. Centrifugal force from the spinning action of the basket "throws off" excess water, oils, or other liquids. At the same time, a turbine fan mounted below the basket creates a powerful suction that pulls air through the parts load for added drying power. This double-drying action assures fast drying and reduces the scarring and marring frequently responsible for costly rejects. In most cases, producing spot-free, moisture-free parts in under 60 seconds.

Can Spin Swarf for Oil /Swarf Separation

 Specifics

  • Spin speed 625 rev/min.
  • 18" x 18" // 450 x 450mm basket.
  • 2Hp // 1.5kW motor.
  • Reversible.
  • 68 Kgs, 150Lbs weight capacity.
  • Safety Interlocked Lid.
  • Foot brake.
  • Process timer.

pdf icon Print / Download New Holland Forward / Reverse Centrifugal Dryer K-90 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
