Machines & equipment for sale

EMB Papst Table Rotation, 4 Fan Cooler Unit with Loading & Unloading Conveyors

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 510 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
ME925
Manufacturer
EMB Papst
Model
4 Fan Cooler Unit with conveyors.
Year of Manufacture
2016
Condition
From a working environment, Good Condition, Seen powered at RSW
Capacity
Continuous Throughput
Process Application
In-Line Cooling
Other Info
Originally used for Hot Stamping cooling
Location
Warehouse Clearance
External Dimensions (WxDxH mm) [?]
1400 x 2000 x 1325 (Cooling unit only)
Delivery
Your delivery options

Description

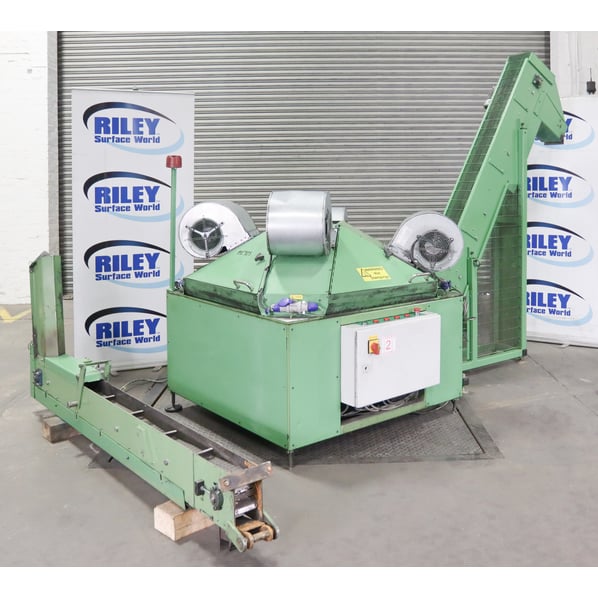

This cooling unit was originally designed to cool hot stamping prior to the next operation. Parts were moved on a metal belt conveyor into the slowly rotating table which moved them below the four cooling fans, one at a time to reduce the temperature of the parts prior to being conveyed to the next operation.

Conveyor 1

  • Metal belt motor driven, loading conveyor
  • Width - 100mm
  • Length - 2250mm

Cooler

  • Metal driven rotating spiral table
  • Four cooling fan system
  • Each fan 240 Volt,  3 amp, 465W 1640 rev/min. 285mm wide

Conveyor # 2

  • Metal belt lifting conveyor
  • Width - 200mm
  • Height - 1700mm (to outlet)







pdf icon Print / Download EMB Papst Table Rotation, 4 Fan Cooler Unit with Loading & Unloading Conveyors Datasheet
