Machines & equipment for sale

ARJAY Automation Conveyor and Weighing Cell, Comprising of 2 Conveyors weighing Unit Stacking Unit and Control Panel

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
ME924
Manufacturer
ARJAY Automation
Model
Special Purpose Machinery
Year of Manufacture
2018
Condition
From a working environment, Good Condition, Current Model
Capacity
20Kg's
Process Application
Transport and Weighing of Components
Other Info
Weigh Parts Into Pans and Stack
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
Footprint approx. 1650 x 2500 x 1850mm
Delivery
Your delivery options

Description

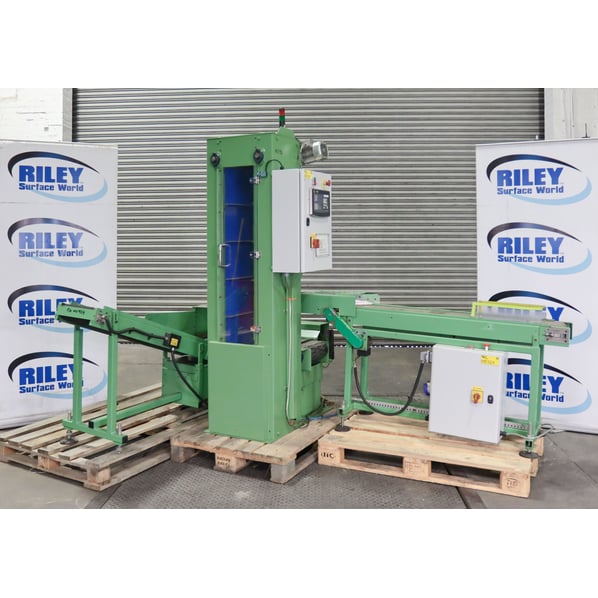

A special purpose set up unit comprising of 2 driven conveyors, a weighing system, a vertical box conveyor and control panel.

In the original design and operation, the Items are conveyed from one process via the first conveyor and the second conveyor positions a suitable container onto the weighing scales. Items are transported up the conveyor and are deposited into the container and the weight is monitored. When the required weight is reached the container is moved into the exit conveyor, The stacking unit indexed and an empty container is positioned on the weighing scales for the next supply of components.

With modifications these items can be re-configured to many different applications.

Loading Conveyor

  • Motor driven belt conveyor.
  • Transporting of components from one operation into a box container.
  • 1650 x 525mm approx.

Vertical box conveyor

  • Holds up to 5 boxes.
  • Box indexing and loading onto conveyor for loading with components.
  • Paddle loading for empty box onto scales.
  • Sizes 1000 X 700 X 1850mm.

Weighing Scales

  • Metal belt Conveyor.
  • PH Excell Precision.
  • IP68 waterproof check weighing indicator with stainless steel housing.
  • Two adjustable weighing speeds.
  • Selectable weighing units, Kg, g, lb and Oz.

Offloading Conveyor

  • Collection of filled box onto roller tracking.
  • Paddle movement of box onto lifting conveyor belt.
  • Conveyor belt lifting to exit height of 850mm.
  • 1650 x 450 x 850mm

Suitable boxes approx. 300 x 200 x 200mm

3 phase 415 volt.





pdf icon Print / Download ARJAY Automation Conveyor and Weighing Cell, Comprising of 2 Conveyors weighing Unit Stacking Unit and Control Panel Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
