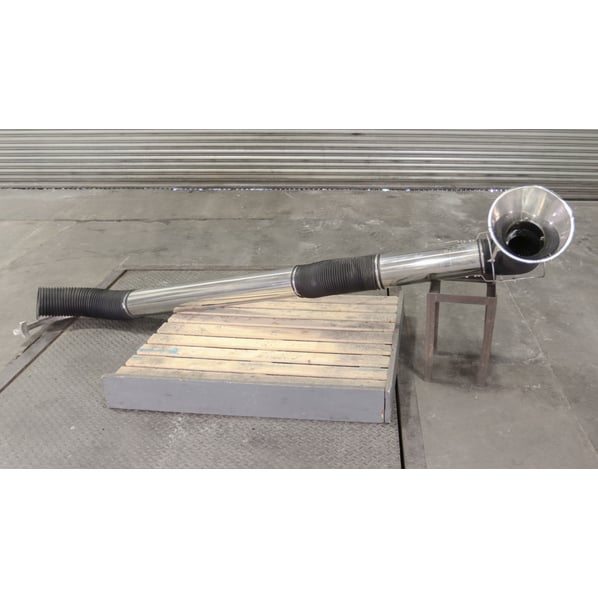

Denios ATEX Rated Articulated Extraction Arm

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EE2216
Manufacturer
Denios
Model
II 2G/D
Condition
From a working environment, Good Condition
Capacity
Extractor Dependent
Process Application
Precise Dust and Fume Extraction
Other Info
ATEX Rated
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
20
External Dimensions (WxDxH mm) [?]
Straight length 2750mm approx.
Delivery
Your delivery options

Description

 This high-quality, efficient dust and fume extraction arm enables businesses to create a safer working environment for their employees.

  • This three section flexible extraction arm allows for precise positioning of an extraction unit where it is needed.
  • Connect to a portable extractor or built-in ducting for a more permanent solution.

Product description

      • For protection from explosive gases and dusts, which may be created, for example when weighing, dosing, mixing or sampling.
      • External parallelogram arm.
      • Handle and funnel in stainless steel (grade 1.4571).
      • Marking: ATEX: EX II 2D/G.
      • Can be used in EX Zones 1/21 and 2/22.
      • Easy to manoeuvre.
      • Holds its position.
      • Highly flexible.
      • PVC hose.
      • External parallelogram frame.
      • 2 hydraulic dampers.
      • Funnel Ø 300 mm, Ø opening 160 mm.

Three stages

  • 1st Stage, Conical end section 300mm long with Ø315mm cone.
  • 2nd stage / middle section of 600mm length
  • 3rd Stage / Third section of 1200mm length.

Flexible hose connections between each stage, all supported on a flexible frame which can be secured at one end to a wall or tube for support.

pdf icon Print / Download Denios ATEX Rated Articulated Extraction Arm Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
