PB Metal Finishing Engineers Ltd Manual Wet Back Spray Booth with Conveyor & Oven


Direct From Site Clearance
- Direct Site Clearance Price [?]
- £ Login or Register for price
- Clearance ends
- 14 October 2025 15:00 GMT while stocks last
- Part of a Direct Site Clearance
- Nordson Powder Coating Plant
- Condition
- From a working environment, Seen working by RSW, Excellent Condition, Current Model
- Location
- Staffordshire, UK
- Stock No
- ROB400
- Manufacturer
- PB Metal Finishing Engineers Ltd
- Model
- Manual Wet Back Spray Booth with Conveyor & Oven
- Year of Manufacture
- 2017
- Serial
- 0486
- Condition
- From a working environment, Seen working by RSW, Excellent Condition, Current Model
- Work Envelope (WxDxH mm) [?]
- 1100 wide x 3000 high
- Process Stages
- Two
- Other Info
- Overhead Oval Loop Conveyor System
- Location
- Staffordshire, UK
- External Dimensions (WxDxH mm) [?]
- Footprint dimensions 30,000 x 8,000
- Delivery Your delivery options
Description
This PB metal finishing manual booth with conveyor & oven features a large wet back spray booth for manual powder/paint application complete with separate gas fired curing oven, both served by a manual overhead oval loop conveyor system.
Spray Booth Technical Specification
- Nominal external dimensions (WxDxH): 4800mm x 4100mm x 3600mm
- Nominal internal dimensions (WxDxH): 3500mm x 4000mm x 3000mm
- Door (work) aperture (WxH): 1100mm x 3000mm
- Water base tank & recirculation pump: Yes
- Inlet Air Filters: Yes
- Internal lighting: Yes
Oven Technical Specification
- External dimensions (excluding gas burners) (WxDxH): 3000mm x 5000mm x 3600mm
- Internal dimensions (WxDxH): 2100mm x 4800mm x 3200mm
- Door aperture (WxH): 2200mm x 3150mm
- Gas heated ducted air recirculation: Yes
- Inlet air filters: Yes
- Internal lighting: Yes
- Nominal operating temperature: 200ºc
Conveyor Technical Specification
- Nominal footprint (DxW): - 30 metres x 8 meters
- Height to top of support steelwork: 4150mm
- Height to work carrier: 3000mm
- Length of each work carrier: 3000mm
- SWL per work carrier: TBA
- Manual turntable in spray booth: Yes
- Three parallel tracks in the curing oven: Yes
Manual Wet Back Spray Booth Description

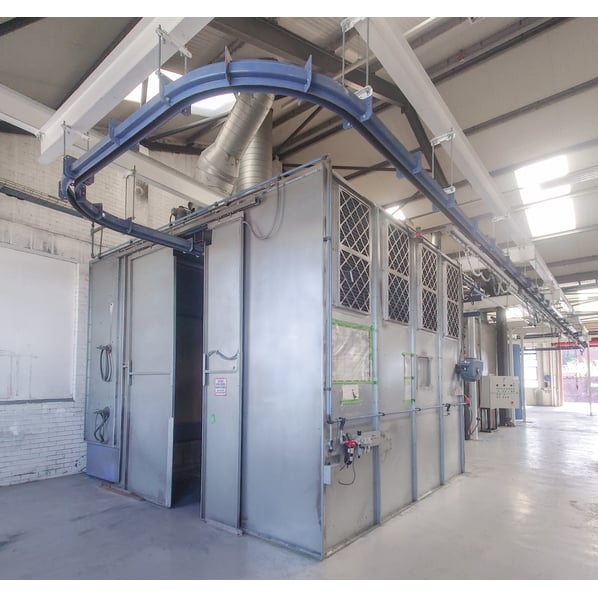

The wet back spray booth is constructed from bolted painted steel panels with an additional internal steel support framework. Featuring manually operated double sliding doors at each end.
The front wall has a large area of rectangular air inlet filter elements. The rear wall is of the wet back design with base tank and recirculation pump to raise the water to a high level trough running the length of the booth from which it overflows and cascades to the base tank with the objective of capturing airborne particulate matter and washing it into the base tank.
There is an extraction fan located on the roof of the booth with ductwork to atmosphere. The booth is fitted with high level internal lighting and connections for air fed helmets.
Curing Oven Description
The curing oven is manufactured from bolted pained steel panels supported by an internal RHS structural frame. It has a double-skinned construction with 100mm rockwool insulation between the inner and outer steel skin while the floor is made of steel chequer plating. There are manually operated double hinged doors at each end.
A plenum chamber housing a gas fired burner is mounted on top of the oven with the heated supply air ducted to low level distribution manifolds running the full length of both sides. The return air to the plenum chamber entering from the top of the oven. The oven has two recirculation fans and an exhaust fan.
Conveyor Description
The manual (pull along) overhead conveyor system is mounted to a painted structural steel framework which is supported by RHS columns bolted to the factory floor, without the need for any special foundations.
The overhead conveyor incorporates a high level turntable inside the booth to enable the hanging parts to be turned so they can be coated/painted on both sides with the spraying direction always being toward the wet back extraction system. The overhead conveyor has a side transfer facility outside both oven doors (entry and exit) to enable three parallel conveyor tracks to be filled with work inside the curing oven. Therefore, allowing three loads of sprayed work to be cured simultaneously.
A combined control panel for the spray booth and the oven is located on the outside wall containing temperature controllers, process timer, selector and on/off switches and indicator lights, control gear etc.
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
