Nordson ColorMax³ Automatic Booth with Pre/Post Touching Manual Platform

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Nordson Powder Coating Plant
Condition
From a working environment, Excellent Condition, Current Model
Location
Staffordshire, UK
Add to Quote Book Appointment
Stock No
ROB500
Manufacturer
Nordson
Model
ColorMax³
Year of Manufacture
2020
Serial
7070887
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
900 x 2600 (w x h)
Process Stages
Automatic and Manual
Other Info
Trakmaster 406 Overhead Powered Conveyor
Location
Staffordshire, UK
External Dimensions (WxDxH mm) [?]
See Below
Delivery
Your delivery options

Description

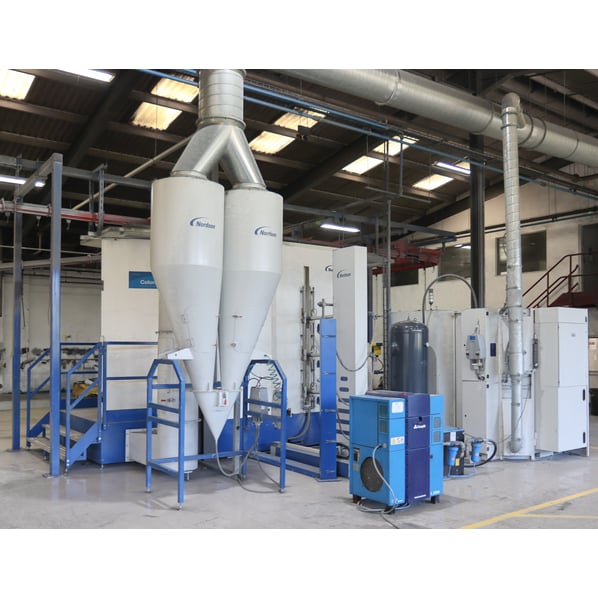

ColorMax³ Automatic Powder Coating Booth

Technical Features

  • Nominal booth assembly footprint: 6.4 m long x 8 m wide x 3.3 m high

  • Nominal afterfilter footprint: 1.6 m long x 2 m wide x 4.5 m high

  • Nominal conveyor footprint: 48 m long x 3 m track centres x 3 m hook high

  • Nominal booth internal size: 2.44 m long x 2 m wide x 2.7 m high

  • Entrance aperture: 900mm wide x 2600mm high

  • Pre and post touching platforms: 1.5m long x 2.2m wide with manual powder gun

  • Application: Electrostatic coating with ignitable powder (LEL >50g/m3)

  • Reciprocator gun movers: 2 off with three guns per side

  • Maximum powder output: 216000 g/h

  • Total openings area 5.7 m2

  • Exhaust fan airflow: 16000max m3/h

  • Minimum exhaust fan airflow: 13000max m3/h

  • Twin cyclones

  • Afterfilter with CO2 fire suppression

  • Spectrum HD powder feed centre

  • PowderPilot HD control centre

 
General Description

A ColorMax³ Automatic Booth with pre/post touching manual platform manufactured by Nordson Deutschland GmbH in 2020.

Typical Nordson system features are as follows:

  • Top quality, productivity and economy

  • Efficient coatings, short set-up and cleaning times, and fast, contamination-free colour changes helping to achieve up to 65% greater productivity along with tremendous savings in energy and powder (up to 45%).

  • In addition, durable components such as the HDLV pumps designed for 4,000 maintenance-free hours of operation and the excellent accessibility of our systems minimize downtime and maintenance costs.

  • ColorMax3 powder coating booth made of special plastics, it minimizes powder adhesion and facilitates fast, easy cleaning with compressed air.

  • Reciprocator Gun Mover able to move horizontally and vertically, it creates optimum conditions for coating an extremely wide range of workpieces.

  • Nordson’s patented Apogee® composite material is extraordinarily strong and prevents powder adhesion. The AirWash system reliably removes powder accumulations from the floor of the booth and returns them to the powder circuit. During maintenance, the booth can be safely entered whenever necessary.

  • Spectrum HD powder centre uses HDLV pumps to supply the guns with powder and conditions recycled material for reuse.

  • Powder sieve, an ultrasonic sieve conditions the fresh powder as well as the recovered powder for reuse. The sieve is clearly visible and directly accessible at all times, which simplifies and accelerates colour changes.

  • HDLV gun pumps conveys the powder from the powder centre hopper to the powder guns.

  • HDLV transfer pumps conveys the powder from the fresh powder box or big bags to the powder hopper as well as the recycled powder from the cyclone back into the powder hopper.

  • PowderPilot HD control system, the equipment control system enables precise digital control of the powder coating system – for easy access to all parameters of the system that controls powder application and the booth.

  • Twin cyclone, with Nordson’s unique twin cyclone, all components are easily accessible, enabling fast inspections and contamination-free colour changes.

  • ATEX-certified afterfilter ensures the flow of clean air throughout the booth. It is equipped with a digital pressure drop control system as well as a pneumatic filter cartridge dedusting system. In addition, it has safety filters, which make it possible to return the purified air back into the hall environment.

  • Filtered-out powder particles from the afterfilter These are sent directly to the waste disposal system.

  • Nordson HDLV Dense-Phase Technology Nordson patented HDLV® (High Density Low Velocity) pumps deliver powder to the spray system with minimum of air offering the independent control of the powder and air volumes. This allows to achieve very soft spray for maximum powder application efficiency. The HDLV pumps have no wear parts affecting the powder output. Delivering maintenance-free performance with high output stability over a long period of time.

  • For maximum savings the soft powder cloud delivers unmatched deposition rate and recess coverage even at high output. Long-lasting internal spray system and pump components minimize maintenance downtime and operating costs.

The equipment is served by a Trakmaster 406 overhead powered loop conveyor installed by Midland Handling Equipment in August 2020. This system is mounted to a painted structural steel framework which is supported by RHS columns bolted to the factory floor, without the need for any special foundations.





pdf icon Print / Download Nordson ColorMax³ Automatic Booth with Pre/Post Touching Manual Platform Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
