RDM Engineering Powder Coating Cell with Booth, Dust Extractor, Cyclone & Electrostatic Powder Coating Spray Gun

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
GC860
Manufacturer
RDM Engineering
Model
Complete Powder Coating Cell
Year of Manufacture
1996
Serial
Various
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
2260 x 1500 x 1500
Process Stages
Coat, Cyclone and After Filter
Other Info
All Equipment Completes a Working Cell
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
Booth = 2600 x 1600 x 2230
Delivery
Your delivery options

Description

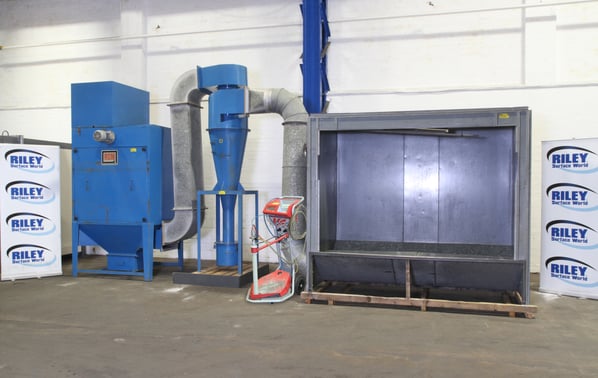

Powder Coating Cell comprising of powder coating gun with dispenser, powder coating containment booth with matching cyclone and powder after filter. All the necessary equipment needed to set up a safe environmentally friendly powder coating operation within your facility (Compressed air and electricity required to run the equipment)

The Theory

Because most wet paint overspray is sticky, it can be arrested by carrying it on an air stream and then trapping the paint particle within either a pleated paper filter, nylon mesh or expanded paper filter. The air can then pass through the filter and the fumes can be exhausted to the atmosphere.

Dry Filter Bench Level Spray Booth

  • Manufactured in galvanized steel.
  • External size of 2600mm x 1600mm x 2230mm high.
  • The spray booth working area is 2260mm wide, 1500mm deep and 1500mm high and has a floor level outlet connection of Ø350mm to connect to the after filter/cyclone unit.

Key Features and Benefits

  • Simple, low cost maintenance.
  • Complies with current health and safety legislation.
  • Low-cost means of providing a safe environment.
  • Increased quality of finished work. Makes working conditions healthier and more pleasant for operatives.
  • Eliminates extra cleaning, previously caused by overspray.

Specifications:

  • Galvanized steel construction.
  • Roof mounted light panels to allow light into the work area.
  • Height from floor is 500mm.

Dry Bag Type Dust Extractor with Pre-Passive Cyclone

This RDM Engineering manufactured dust extractor and cyclone filter system has been manufactured to the highest standard and is ideal for use with powder coating spray booths but can be adapted for use in any application where dust extraction is required, suitable for most dry dust environments such as cement works, paper mills and gypsum works but to name a few.

 After Filter/Dust Extractor

  • The dust extractor is an RA500 unit.
  • Filter area 500ft² / 50M².
  • Motor 7.5kW. / 10Hp
  • CFM = 3000 / 5250M³/min.
  • With 20 anti-static filter bags, 1200mm x 900mm.
  • With a motor-driven auto bag cleaning shaker.
  • No explosion relief as not required for powder coating but one can be fitted if used for other dusts (please ask for details)

Cyclone (Passive)

  • The cyclone is an RC 600 unit, inlet diameter ducting is 300mm, dust collection bucket at the base.
  • CFM 2250 - 3000.
  • The cyclonic mechanical separator uses centrifugal force to remove large and high-volume dusts from industrial applications and is generally employed as a pre-filter to reduce the dust loading on main filter units.
  • An economical solution to a wide range of dust collection problems.
  • Excellent for high dust loads, high temperature, and bulk product recovery applications.

Powder Coating Application Equipment

Manual powder coating equipment with vibrating box feed table.

The e-Jet 2 VT solution is the combination of the best technologies providing ergonomics, reliability and performance. It has been specially designed for companies looking to improve their powder coating application and the overall efficiency of the operator.

Perfect for frequent colour changes and is equipped with a vibrating table to provide:

  • High performance.
  • Enhanced comfort and ergonomics.
  • Reliability.

pdf icon Print / Download RDM Engineering Powder Coating Cell with Booth, Dust Extractor, Cyclone & Electrostatic Powder Coating Spray Gun Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
