Machines & equipment for sale

Caltherm Industrial Electric Twin Lane, Roller Track, Through Heating / Stoving / Drying Oven

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 1,250 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
OC2449
Manufacturer
Caltherm
Model
Double Vertical Door Pass Through Heated Oven
Year of Manufacture
2000
Serial
5502/1
Condition
Good Condition
Internal Size (WxDxH mm) [?]
2 chambers each 400 w x 1600 d, 500 h
Max Temp
250°C TBC
Other Info
Increase your heat treat throughput
Location
Warehouse Clearance
Weight (kgs)
930
External Dimensions (WxDxH mm) [?]
1935 x 1950 x 2720
Delivery
Your delivery options

Description

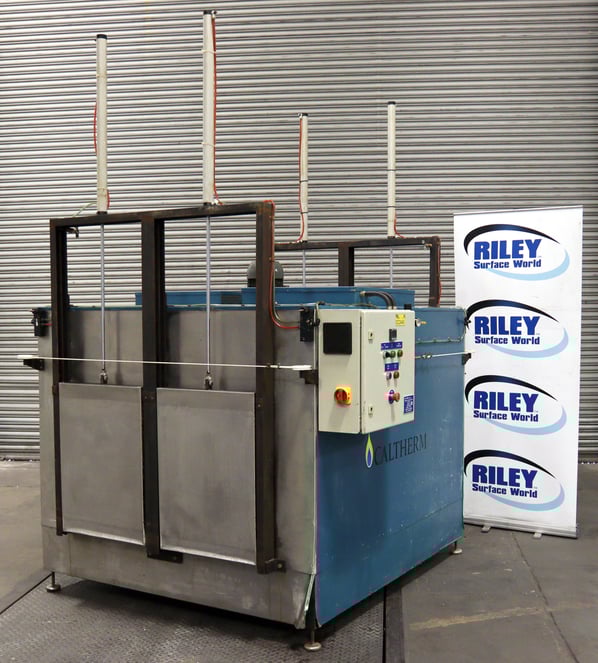

A Caltherm oven/dryer, featuring two through feed chambers with independently controllable entry and exit doors. Roller tracking enables the ease of rolling in and through the chambers of components or fixtures with a suitable flat base. Additional roller tracking is supplied to offload from the chambers (image 15).

Features

  • Twin chambers with roller tracking.
  • Four independently controllable doors.
  • Air circulation fan.
  • Twin heating elements.
  • West 6100+ PID temperature controller.
  • Overtemperature controller with max. of 300°C.
  • Manual controller air vents, one per chamber.
  • Safety cable runs round the entire oven.
  • Max component size 400mm wide x 500mm tall.
  • 7 day timer.
  • Ø75mm Flue.
  • Roller track centres 150mm.

pdf icon Print / Download Caltherm Industrial Electric Twin Lane, Roller Track, Through Heating / Stoving / Drying Oven Datasheet
