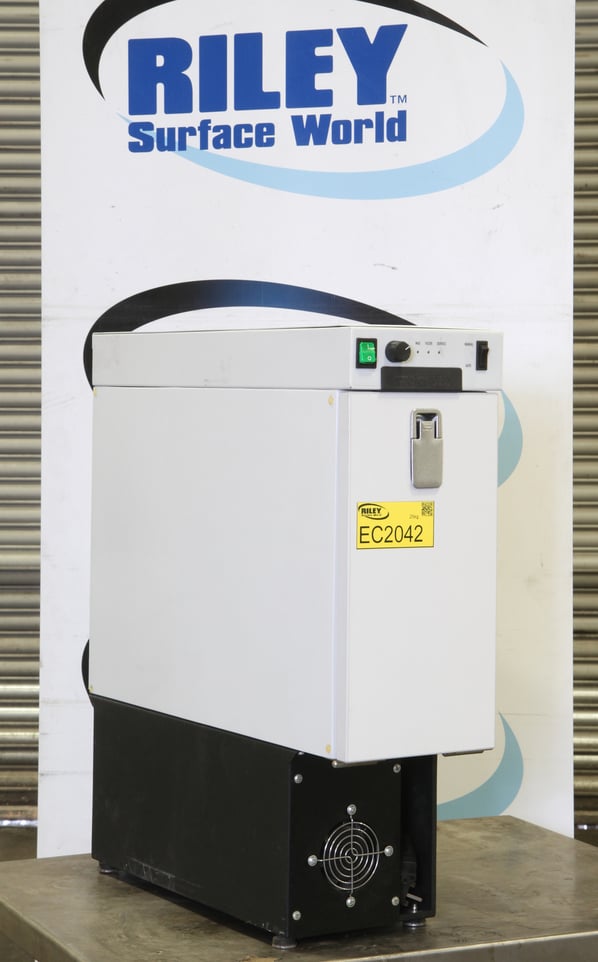

Zubler V7000 Dust Collector

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Unused, Current Model, Seen powered at RSW
Stock No
EC2042
Manufacturer
Zubler
Model
V7000
Serial
S1500
Condition
Excellent Condition, Unused, Current Model, Seen powered at RSW
Approx Duty CFM / M³/Hr
53-80 // 90-135 @ 34 in wg // 85mbar
Filter Area ft² / m²
43 + 75 // .4 + .7
Other Info
Suction of 20-40 L/S
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
25
External Dimensions (WxDxH mm) [?]
200 x 620 x 680mm
Delivery
Your delivery options

Description

These single suction units are highly versatile, for low-dust and fume applications, they can also be used with manually controlled or automated milling devices (e.g. for zirconia objects).

The suction units can also be selected for any workshop or laboratory applications involving dry dusts. Applications of this type may include various modes of processing minerals, resins or metals in different sectors of industry.

V7000 Features:

  • Single-position vacuum unit with a dual filtering system.
  • Fixed unit with automatic actuation via handpiece recognition.
  • Automatically adjusted suction rates.
  • System turns off when the filter is full.
  • Filter and motor LED status lights.
  • Narrow tower housing with a large filter volume.
  • Front access for filter maintenance through a caddy bay.
  • Very low noise by high-grade acoustic isolation.
  • Different bag filters and activated charcoal filters are offered as accessories.
  • Brushless motor.


The unit is also eminently suitable for removing flue gases such as those generated during laser welding when fitted with optional “special” filter bags placed in sequence, which has the side effect of reducing the noise and extending the life of the vacuum turbine.

Specifications:

Voltage AC - 240v
Power Consumption Max - 1700w
Suction Max - 700w
Auto Socket Max - 1000w

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

pdf icon Print / Download Zubler V7000 Dust Collector Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
