Machines & equipment for sale

D and S Ultraclean (ICI) Cleanfast DLS Model E165V Vapour Degreaser

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
DB1458
Manufacturer
D and S Ultraclean (ICI)
Model
Cleanfast DLS Model E165V
Year of Manufacture
1999
Serial
10126
Condition
From a working environment, Good Condition, Seen powered at RSW
Work Envelope (WxDxH mm) [?]
500 x 500 x 700 s.w.l.30kg Max. Load.
Process Stages
2 Stage Liquid immersion vapor rinse/dry
Other Info
Automatic cleaning cycle EPA PP6/23 Comp
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
900
External Dimensions (WxDxH mm) [?]
1550 x 2030 x 2960
Delivery
Your delivery options

Description

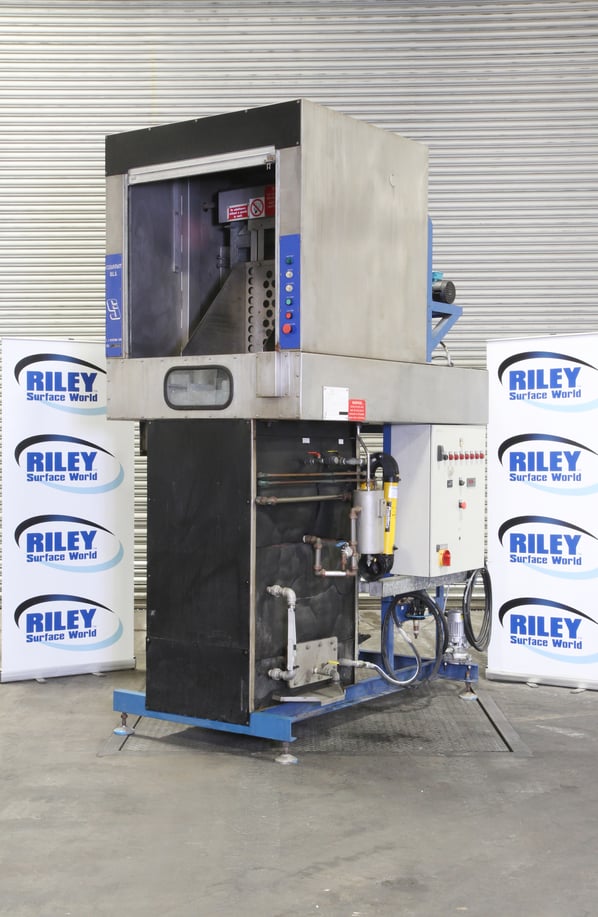

A used stainless steel semi-automatic enclosed solvent vapour degreaser plant from the ICI range of cleaning machines. Degreaser most recently running Perchloroethylene, suitable for a boiling point of 121°C

These machines are designed to work along side a wide range of halogenated cleaning solvents with a boiling point of 121°C

Description of Single compartment solvent vapour cleaning plant

The C J System range of single compartment vapour cleaning plans as specifically designed for use with chlorinated solvents but this unit has been most recently used with Perchloroethylene. The plant consists of a single chamber which is electrically heated by half sheathed ring elements and condensing coils which are water cooled.

The chamber contains the liquid solvent in the sump which is boiled to form a saturated vapour. The vapour produced is controlled by the working height and in turn by the condensing coils, these condense the vapour back into a clean liquid. This distillate is collected in the distillates troughs, this then passes through a water separator and returns to the sump for re-use.

Feature include:

  • Stainless steel construction with reinforcements as necessary.
  • Stainless steel construction with reinforcements as necessary.
  • Vapour exhaust system with built in fan.
  • 4 sided rim extraction with integrated fan.
  • Chilled cooling water condensing coils. Flow rate 325 Litres/Hr at 20°C Max.
  • Vented clean out door and upper chamber.
  • Top safety cut out to prevent vapour escaping in the event of a coil failure.
  • Bottom safety cut out to prevent the sump liquid from becoming over contaminated.
  • Low level cut out to prevent 'boil dry'.
  • Complete with unique ICI double lid sealing system and semi automatic integral basket hoisting facility.
  • Original OEM manual.
  • 415 volts,  3 phase, 40 amps
  • Power-trim energy-saving device and thermally insulated stainless steel tank.

Specification

  • Empty Weight 900kg.
  • Full Weight 970kg.
  • 50 Litres liquid charge.


NOTE: The DLS with the double lid sealing system meets the requirements of the EPA guidance note PP6/23 and the current operator exposure regulations.




,

pdf icon Print / Download D and S Ultraclean (ICI) Cleanfast DLS Model E165V Vapour Degreaser Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
