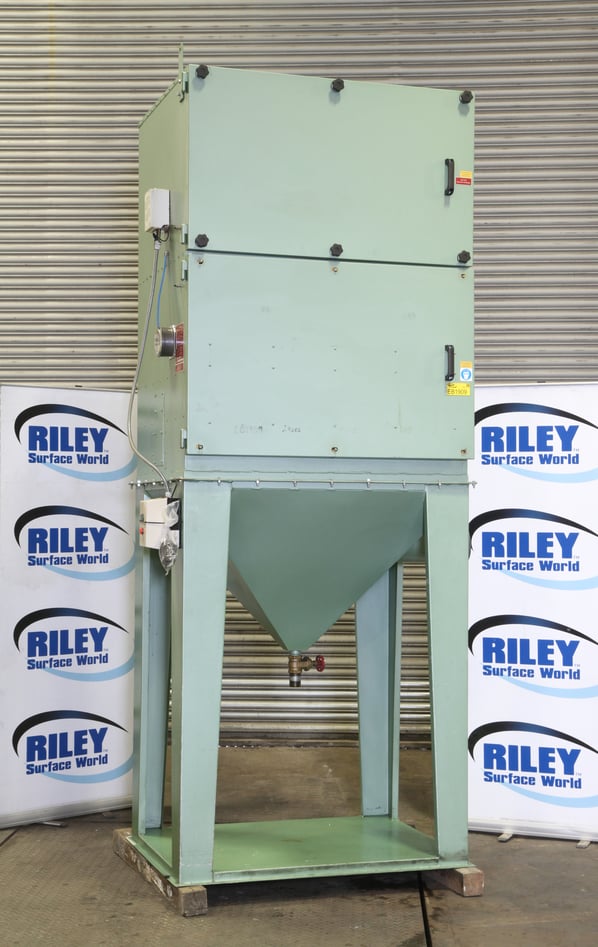

Filtex FX294 Configured For Oil Mist plus Air Streams with Debris

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Seen powered at RSW
Stock No
EB1909
Manufacturer
Filtex
Model
FX294 VH
Year of Manufacture
2016
Serial
11770
Condition
Good Condition, Seen powered at RSW
Approx Duty CFM / M³/Hr
2000 // 3500 ( see chart )
Filter Area ft² / m²
294 // 27.30m2
Other Info
Set up for Oil Mist + Debris Extraction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
290
External Dimensions (WxDxH mm) [?]
1480 x 970 x 3180

Description

This second hand FX294H with 5.5 kW extraction fan is an extremely versatile fine dust filter, capable of handling numerous dust types over a wide range of applications. Currently set up for oil mist extraction without a shaker motor.

A completely self-contained dust collector, with integral fan, acoustic attenuator and automatic controller the FX uses high efficiency envelope filter elements to cope with anything from fine and light dusts through to heavy and abrasive dusts.

The FX is designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes.

The FX benefits from as standard zintec steel for even more demanding environments.

The FX filter performance enables the recirculation (in some circumstance) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

The above design duties are based on an 8:1 cloth to air ratio. Polyester needlefelt filter media is included as standard. Other filter medias are available.

Fan duty of the FX294

  • Heavy dusts 4000m³/h @ 1750pa
  • Medium dusts 3000m³/h @ 1750pa
  • Light dusts 2000m³/h @ 1750pa

Details

  • Filter cloth area 27.30m² /293 ft*
  • Fan motor 5.5kw / 7.5hp
  • Overall dimensions 1480mm x 970mm x 3180mm high

Current set up with hopper exit tap for oil collection, no shaker motor fitted.

pdf icon Print / Download Filtex FX294 Configured For Oil Mist plus Air Streams with Debris Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
