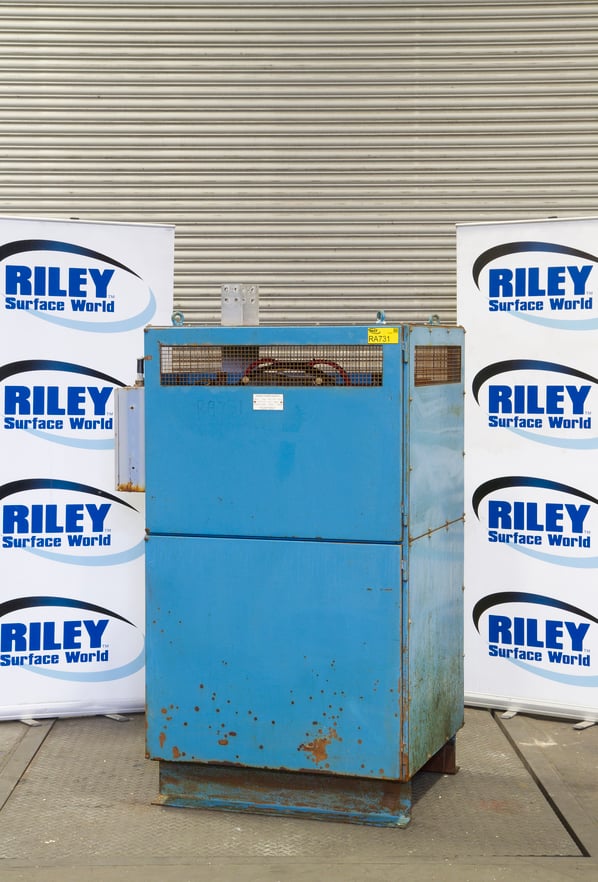

Drake Power Systems 24V/1250A DC Air Cooled Transformer Rectifier

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 350 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
RA731
Manufacturer
Drake Power Systems
Model
Saturable Reactor Control
Serial
3248
Condition
From a working environment
Voltage
24V
Amps
1250
Other Info
Silicone Diode
Location
Warehouse Clearance
Weight (kgs)
750
External Dimensions (WxDxH mm) [?]
1050 x 850 x 1770
Delivery
Your delivery options

Description

Transformer/Rectifier Technical Specification

Control: Saturable reactor (transductor) controlled, to give current regulated output control 5%-100% range

Rectifier Type: Silicon diode, full wave rectification, bridge connected, 6 Pulse configuration

Output DC: 1250A 24V DC

Input AC: 415-440VAC 3 Phase 50/60Hz +\- 10%.

Control Supply: 240VAC 1 Phase (derived internally)

Input Power: 52Amps @380/440 3 phase 50Hz

Dimensions: 1050mm x 850mm x 1770mm

Weight: 750kgs

Parallel Operation: The saturable reactor control circuit is designed so parallel operation is achievable, without any need for current sharing circuits. Each unit has inbuilt current limit so overloading in parallel operation is impossible.

General Construction: Consisting of a standard floor mounted steel enclosure with hinged opening front doors for ease of access. Enclosure fitted with channel under-base for ease of moving. All transformers and electronic equipment suitably protected against corrosive environments.

Operating Conditions: Indoor use in up to a 40°C ambient temperature.

DC Output Connections: DC Heavy duty aluminium busbars.

Ripple: Standard Rectifiers  5% or better over the full range of operation.
