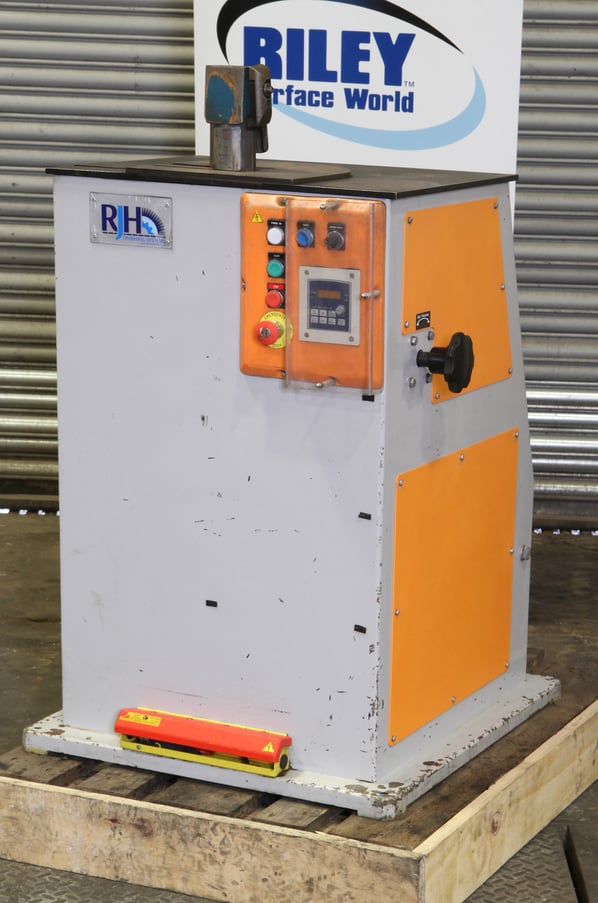

RJH Powerflin Lynx LX Series Ring and Extremity Finisher / Belt Grinder

Stock No

PA1138

Manufacturer

RJH

Model

LX Series

Year of Manufacture

2013

Serial

85058

Condition

Seen working by RSW, Good Condition, Current Model, Seen powered at RSW

R.P.M.

3000

Hp/Kw

4kw / 5.5Hp

Other Info

Safety DC Foot Brake

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

292

External Dimensions (WxDxH mm) [?]

700 x 1030 x 1220 ( with doors open)

Delivery

Your delivery options

Description

The RJH POWERFIN LYNX Ring and Extremity Finisher and Belt Grinder is a heavy duty high performance machine designed for finishing internal rings, open or blind components.

The Powerfin Lynx complies with the European Machinery Directive.

KEY FEATURES

• Quick action top roller.
• Shaped platen.
• Adjustable table.
• Fabricated steel.
• Pneumatic belt tensioning.
• Mechanical belt tracking.
• Two dust extraction spigots – 50mm and 125mm diameter.
• 50mm wide x 2500mm long belt.

SAFETY FEATURES

• D.C. Injection braking.
• Full guarding.
• Electrical interlocks on belt guard.
• No-volt overload push-button controls.
• Heavy duty foot stop.

Technical Details

• 4kW motor
• 3000rev/min
• 415V / 3Ph / 50Hz
• Belt size 50 x 2500mm
• Max ring diameter 120mm
• Max component height 75mm
• Belt Tracking adjustment

Spares

• There are a large selection of spare belts.

Print / Download RJH Powerflin Lynx LX Series Ring and Extremity Finisher / Belt Grinder Datasheet

Additional files

Data sheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
