Machines & equipment for sale

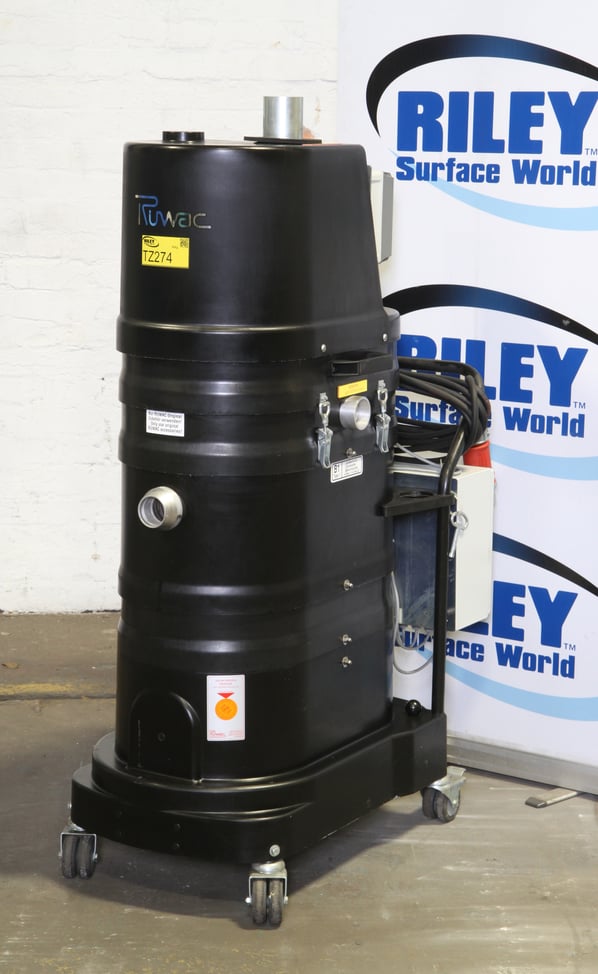

Ruwac Industriesauger NA35 DustEx /GasEx Wet Separator

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Stock No
TZ274
Manufacturer
Ruwac Industriesauger
Model
NA35 D1B1 Typ III
Year of Manufacture
2007
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
35 Litre
Filter Area ft² / m²
Controlled Dust and Gas Separation
Other Info
Gas/Air Temp upto 70°c
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
See attached OEM docs

Description

Ruwac Industriesauger NA35 DustEx / GasEx Wet Separator.

Wet separators are used to separate dust and dust particles of all kinds. They are passed into liquid media and are safely bound there. Our wet separators are available in different designs that differ in size. They are particularly suitable for suction materials such as propellant powder, explosives, titanium, aluminium dust or magnesium dust. The dusts are introduced into liquid media and are therefore no longer easily flammable. And even cooling hot gases is possible.

Technical equipment (machines and apparatus) for separating dust from raw gases is referred to as wet separator (NA). The NA extract the dust-laden air and transport it into one Liquid-filled collecting container. There air and dust are swirled with the liquid, whereby the dust binds to the liquid and as
Sediment sinks to the bottom.

Area of application, among others SLM (laser melting process) aerospace, automotive or medical technology.

Suitable for suction, etc. of explosive dusts, sticky or explosive dusts, propellant powder residues, explosives, Titanium, Aluminium or Magnesium dusts.

Features
Easy removal of the collecting container
Housing made of sheet steel
Proven GRP housing
Flexible thanks to the modular design
Easy emptying and cleaning

Technical Details
Housing: GRP
Motor power (kW)1.5 – 4
Voltage (Volt) 400
Negative pressure (mbar) -180 –  -213
Air flow rate (m³/h) (measured with 3m hose) 250 – 350
Sound pressure level (dB(A)) (DIN EN ISO 3744) 64 – 70
Residual Dust filter for dust class H (m²) 3.2
Cartridge filter for dust class M (m²) 2 x 1.7
Height (mm) (for dust class L, M) 1,480 – 1,490
Width (mm) 540 – 700
Length (mm) 840
Protection class IP55/65
Capacity (litres) 35



pdf icon Print / Download Ruwac Industriesauger NA35 DustEx /GasEx Wet Separator Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
