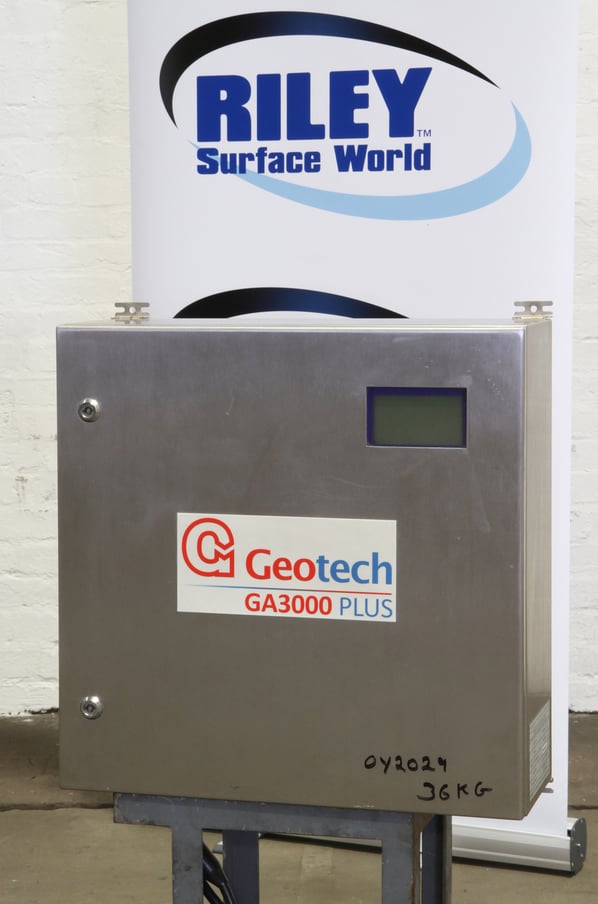

Geotech Gas Analyser

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 500 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
OY2029
Manufacturer
Geotech
Model
GA3000 Plus
Year of Manufacture
2014
Serial
GA3KP222
Condition
Current Model
Process Application
Measure various gases Typical, land fill
Other Info
OEM support available
Location
Warehouse Clearance
Weight (kgs)
36
External Dimensions (WxDxH mm) [?]
600 x 220 x 600
Delivery
Your delivery options

Description

The GA3000PLUS system was originally designed to measure the Methane, Carbon Dioxide and Oxygen content of Biogas. Typically from a Landfill site or an Anaerobic digester.


This actual system was used originally to measure the above gases including Hydrogen Sulphide, this was used as a measurement tool for a prototype system being developed  to evaporate car tyres and use the bi-product as an energy source

This GA 3000 Plus offers gas monitoring and analysis from local data inputs and features;

Features

  • CH4, CO2 and O2 standard measurement
  • Optional H2S, H2 and CO measurement (choice of up to two additional gases)
  • Multi-point sampling
  • H2S ranges from 0-50ppm to 0-10,000ppm
  • Monitors before and after desulphurisation
  • Continuous monitoring option, with three minute daily air purge
  • Clean air purge
  • Modus communication
  • Gas return to process as standard

  • IP65 rated stainless steel enclosure.

Benefits

  • No training required
  • Low cost of ownership
  • Quick and easy self-instalation
  • Compact self-contained system
  • Moisture removal included as standard
  • Zero service downtime
  • Clear servicing schedules
  • Field proven equipment
  • Start up configuration wizard
  • Simple user calibration

Main Applications

  • Landfill and Biogas
  • Anaeboric digestion projects
    Waste water treatment
    Food processing plants
    Food and animal waste
  • Clean development mechanism

pdf icon Print / Download Geotech Gas Analyser Datasheet
