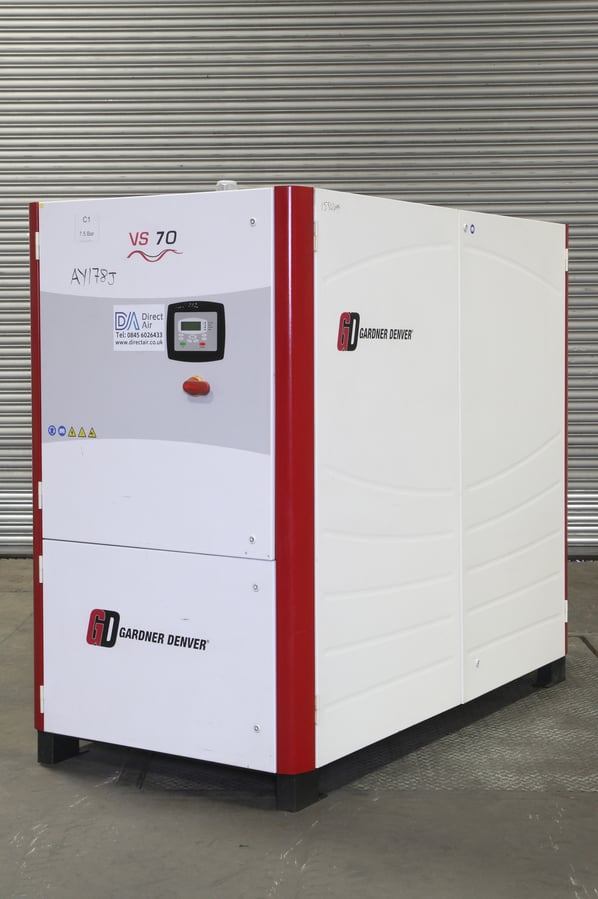

Gardner Denver Variable Speed Heavy Duty Industrial Air Compressor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
AY178J
Manufacturer
Gardner Denver
Model
VS70 EANA
Year of Manufacture
2008
Serial
FO 11112
CFM/Kw
410 / 76kW
Compressor Type
Oil filled twin screw compressor
Other Info
Variable speed compressor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1550kgs
External Dimensions (WxDxH mm)
2400 x 1120 x 2000mm

Description

The Gardener Denver VS series of enclosed regulated speed  compressors provide a variable speed offering in a compact enclosed format

While fixed speed rotary compressors are most efficient in continuous duty applications, regulated speed machines optimize energy efficiency when operated below full load capacity.

The Gardener Denver VS series offers all of the same features and benefits of the enclosed fixed speed range, with the added benefit of up to 50% energy savings due to decreased electricity consumption. These units produce only the amount of air required to meet application demand.

Gardener Denver regulated speed screw compressors come as standard with line reactors and built-in EMC filter.

The inverter drive efficiently matches energy consumption with air demand, and the reduced energy also provides energy savings. This system supplies a low starting current and reduces off load power to 25% by rapidly venting internal pressure.

Last serviced August 2018 (see report attached) Run Hours 73948.

Benefits

Reliable
Direct drive and simple design
No gears. No belts.
High quality air
Consistent pressure straight from the outlet means less downstream equipment required.

Versatile Quiet as standard With noise levels as low as 62 dB(A) a Gardener Denver VS series can  be located at the point of use. Air Intake modulation control No wasteful overproduction of air.

 Features

 6 to 13 bar
 76 kW
 410 cfm
 Low noise levels
 Fully Enclosed
 IP55 Electric Motor
 Speed Range: 870-2220 RPM
 Proven Inverter Drive System
 Lower Off Load Power
 Selectable target pressure
 Electronic Controller
 Over-temperature protection
 Direct Drive
 Smallest footprint in its class

Range Features

Model: VS70 EANA

Serial No: FO 11112

Motor Power 76.0 kW

Delivery Pressure 7.5 bar,

Volume :410 cfm

Maximum Speed: 4992

11.6 M3/hr capacity

76.1 KW Motor



pdf icon Print / Download Gardner Denver Variable Speed Heavy Duty Industrial Air Compressor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
