Machines & equipment for sale

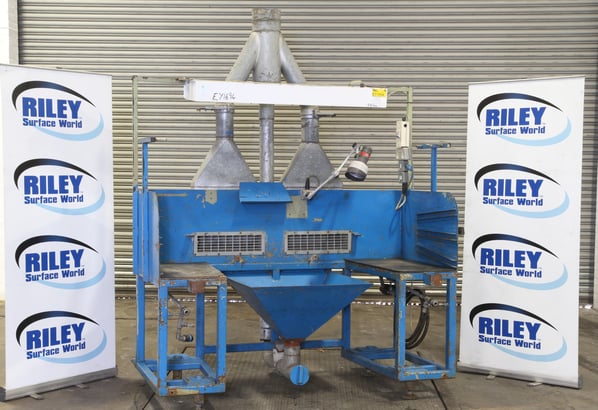

Fixed Height Fettling Bench with Lighting

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 450 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
EY1694
Model
Heavy duty downdraft bench
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
Heavy work surface can take 250 kg load
Filter Area ft² / m²
Numerous dust capture workstation
Other Info
No work table included
Location
Warehouse Clearance
Weight (kgs)
550
External Dimensions (WxDxH mm) [?]
1970 X 1200 X 2620
Delivery
Your delivery options

Description

This robust workstation takes care of the pollutants before they reach the breathing zone. The air and lighter dust are extracted directly from the back of the table whilst the heavier particles fall downwards through a grid to the collection hopper below. (Suitable grid to be fitted by the purchaser)

The duct connection for the external fan is located on top of the table and it is recommendable to use an appropriate separate filter device between the grid and the fan.

This station is fitted with both fixed and articulated lighting to ensure high quality control of the fettling process.

A comprehensive air management and electrical power supply system is also installed on the unit which allows a choice of either electrical or pneumatically powered tools to be used on the bench.

  • External Size: 1540mm x 1100mm x 2420mm
  • Potential work area: 1535mm x 800mm
  • Duct Size: 200mm diameter working at 1m/second velocity





pdf icon Print / Download Fixed Height Fettling Bench with Lighting Datasheet

Auction Lots Descriptions and photographs are provided in good faith but may not be correct. It is the Customer's responsibility to ensure that the machinery is fit for the purpose for which it is purchased and safe for the purpose of use at work via physical inspection. All sales are deemed to be 'as inspected' and 'as is, in situ' even if the customer has waived the right to inspect.
