Machines & equipment for sale

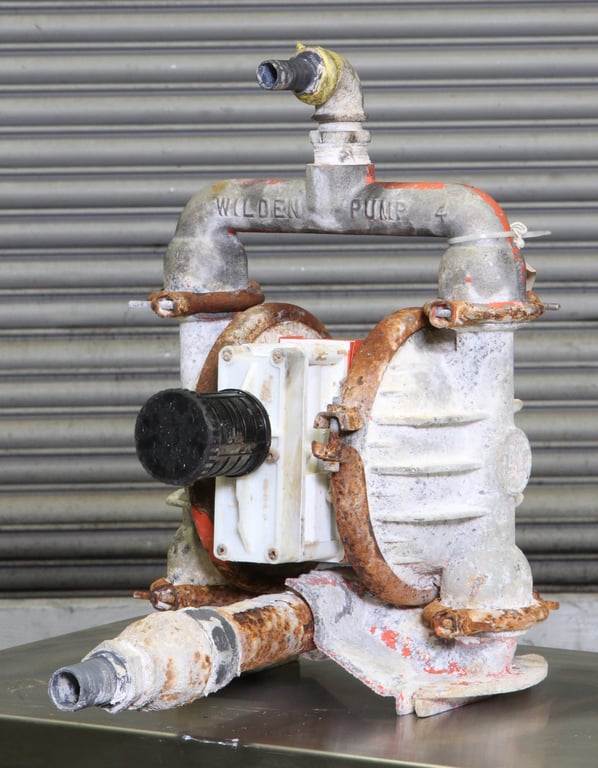

Wilden P4 Diaphragm Pump

Special Offer

Refurbished Price [?]
£ 750 (+ VAT)
Special Price
£ 500 (+ VAT)
Special offer ends
06 September 2018 15:00 GMT while stocks last
Stock No
TU148
Manufacturer
Wilden
Model
P4/AAPP/BN/BN/BN 014
Year of Manufacture
2004
Serial
0020433076
Location
Casting
Weight (kgs)
13 Kgs
External Dimensions (WxDxH mm)
365 x 620 x 550 mm with fittings

Description

Wilden P4 - 38 mm (1 1/2") Metal Pump

The Wilden P4 has a 38mm inlet and is designed to pump liquids containing particles of up to 4.8mm in diameter at flow rates up to 306.5 LPM.

Its patented Pro-Flo air  distribution system is based on design simplicity and proven efficiency. This pump is constructed with a center block of diecast aluminium, polypropylene centre section with brass air valve.

The diaphragm is constructed Ultra flex Buna N elastomer with  ball valve assembly is constructed from Buna N elastomer which is suitable for pumping most water based liquids at temperatures from -12°C to +65.6°C.

Wilden P4 - 38 mm (1 1/2") Metal Pump

FLOW RATE TO 306.5 LPM (81 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY

5.8 m (19')

ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +65.6 (+150) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
EPDM™-51.1 (-60) to +137.8 (+280) °C (F°)
Polyurethane-12.2 (+10) to +65.6 (+150) °C (F°)
Saniflex™-28.9 (+20) to +104.4 (+220) °C (F°)
PTFE+4.4 (+40) to +104.4 (+220) °C (F°)
Viton®-40 (-40) to +176.7 (+350) °C (F°)
Wil-Flex™-40 (-40) to +107.2 (+225) °C (F°)



pdf icon Print / Download Wilden P4 Diaphragm Pump Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
