RJH Engineering Ltd Model 1060 Linisher

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
In stock now
Stock No
RJH Engineering Ltd
New or Used
Used (Second Hand)
1 / .75
Other Info
High torque industrial linishing machine
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
Belt length upto 1800mm long, 50 mm wide


Linisher is a high quality industrial triangulated backstand linisher / belt sander suitable for use on a variety of materials and processes. The 1060 offers enhanced flexibility as it can be fitted with a wide range of contact wheel and belt sizes, including small and miniature contact wheels. It is particularly suited to turbine blade processing. The robust design of the 1060 makes it ideal for continuous production working on flat and profiled components. The 1060 complies with the European Machinery Directive. All RJH Morrisflex machines carry a 3 month warranty
- Heavy duty fabricated pedestal
- Bench mounted motor with pulley vee belt drive
- Supplied with a Morrisflex grooved Rubberflex contact wheel.

Optionally supplied with:

-Choice of contact wheel heights to suit requirements
-Variable contact wheel sizes from 12mm up to 200mm diameter
-Turbine attachment for contact wheels down to 12mm diameter
-Remote dust extraction to enable compliance with UK COSHH regulations
-Adjustable dust hopper with extraction spigot - 75mm (3”) Turbine diameter attachment
-Rear Guard
-Electrically interlocked guard

pdf icon Print / Download RJH Engineering Ltd Model 1060 Linisher Datasheet

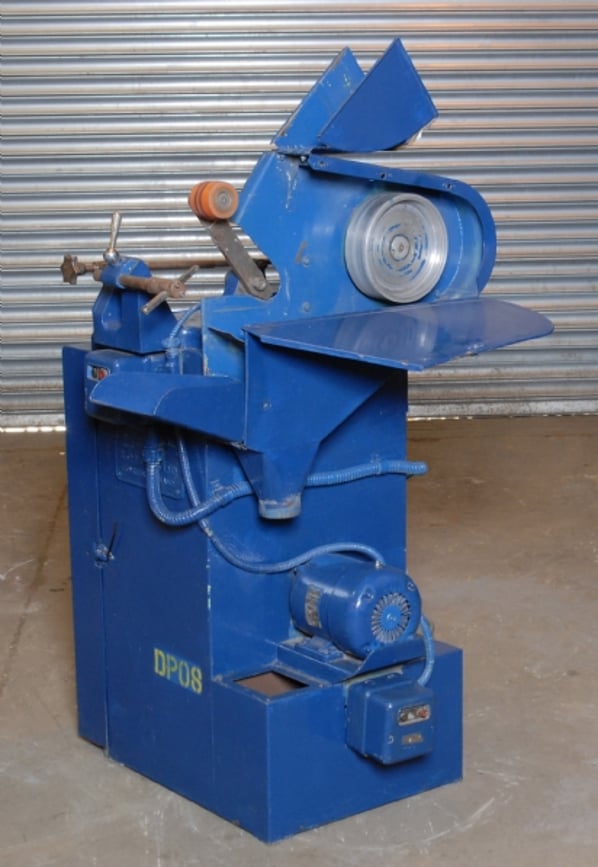

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
