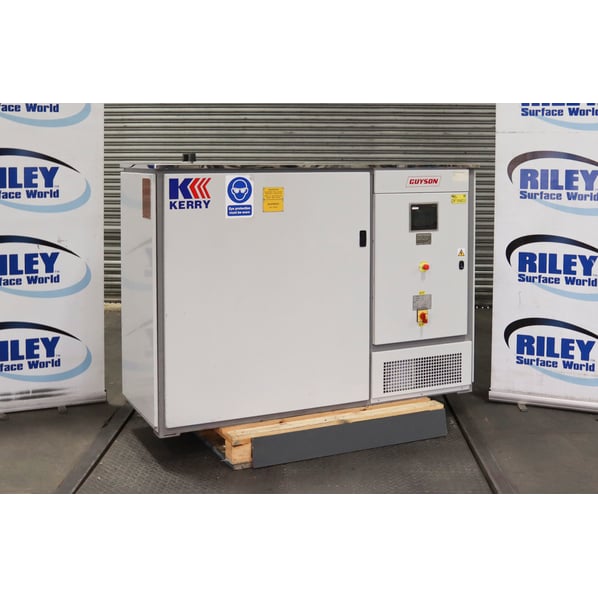

Kerry ( Guyson International ) 350 Mono Solvent Microsolve Cleaning Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
DF1640J
Manufacturer
Kerry ( Guyson International )
Model
M350/2M
Year of Manufacture
2010
Serial
804080
Work Envelope (WxDxH mm) [?]
200 x 350 x 330
Process Stages
2 stage
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
550
External Dimensions (WxDxH mm) [?]
1850 x 750 x 1325
Delivery
Your delivery options

Description

The Kerry 350 Mono-Solvent cleaning machine is designed for precision cleaning of water sensitive components and assemblies where solvent cleaning delivers improved process performance. The mono-solvent system combines ultrasonic cleaning with vapour rinsing and drying, providing thorough and controlled cleaning across a wide range of suitable solvents.

Designed for efficient solvent use, the machine features dual refrigerated reflux cooling and a high 150% freeboard ratio, helping minimise solvent losses. A secondary refrigeration system also operates during standby to further reduce solvent evaporation.

The two stage cleaning process incorporates heated ultrasonic cleaning with pumping and filtration, followed by an electrically heated boiling stage that generates solvent vapour for rinsing and drying. Distilled solvent is condensed, separated from water and returned to the ultrasonic tank, while contaminated solvent is displaced into the boiling sump for distillation.

Continuous filtration and distillation help maintain controlled solvent cleanliness, while the self-contained controls and E200 PLC controller provide straightforward operation and process control from the main control panel.

Key Benefits

  • Ease of use
  • Faster processing
  • Higher throughput
  • Increased flexibility of load content
  • Reduced running costs
  • Consistent operation
  • Retrofit to existing systems

General Specifications

  • Internal tank dimensions (WxDxH) - 200mm x 350mm x 330mm
  • Basket dimensions (WxDxH) - 200mm x 300mm x 200mm
  • Vapour depth - 430mm
  • Freeboard height - 375mm

pdf icon Print / Download Kerry ( Guyson International ) 350 Mono Solvent Microsolve Cleaning Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
