Machines & equipment for sale

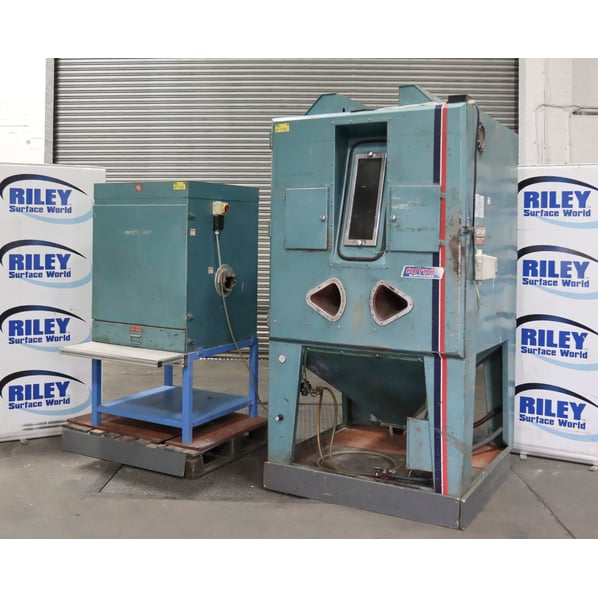

Guyson International Super 9 Blast Cabinet with Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
SF1106
Manufacturer
Guyson International
Model
Super 9
Serial
99395
Work Envelope (WxDxH mm) [?]
1200 x 1200 x 1325mm
Work Handling Method
Manual
Other Info
Over height cabinet
Location
Our Central Warehouse, Aldridge, UK
Delivery
Your delivery options

Description

This second hand Super 9 cabinet combines rugged durability with a rigid, tightly sealed construction, providing a high quality blasting solution for larger components and demanding jobs. Finished to a high standard, it’s built to deliver reliable performance where bigger blasting capacity is required.

The Guyson 9 is an over height cabinet with manual rotary table and crane entry for those larger and taller jobs, with exceptional component entry and twin height sleeved armholes which provide safe and comfortable operator access. (Top two armholes are blanked off)

This blasting cabinet offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others. Ideal for component producers, reconditioners and remanufacturers seeking to replace these slower and more labour intensive methods.

Using compressed air to propel blast media directly at the component through an exclusively designed blast gun. These clean and safe operations are housed in the illuminated cabinet from which dust is constantly removed and the blast media recycled to provide a continuous and reliable cleaning and finishing system.

The Guyson bead blast cabinet is capable of using a wide selection of blast media at alternative pressures low enough to blast delicate parts and high enough to handle the most demanding cleaning and finishing operations.

Suction feed or venturi systems are generally selected for light-to-medium production requirements.

Technical Details

  • Internal dimensions - 1200 x 1200 x 1325mm
  • Cabinet overall height - 2265mm
  • Front aperture - 1125 x 1265mm
  • Turntable dimensions - Ø900mm
  • Max load - 250kg

Dust Extractor

The Guyson dust collection unit is a highly efficient unit for filtering out and collecting the dust laden air from the blast cabinet. The heavier extracted particles being deflected downwards towards the collection bin, the lighter particles are retained on the surface of the filter. The unit takes 12 x filter sock type filters.

  • External dimension - 930 x 1210 x 1730mm (including stand)
  • Electrical requirements - 415v, 3 phase

pdf icon Print / Download Guyson International Super 9 Blast Cabinet with Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
