Machines & equipment for sale

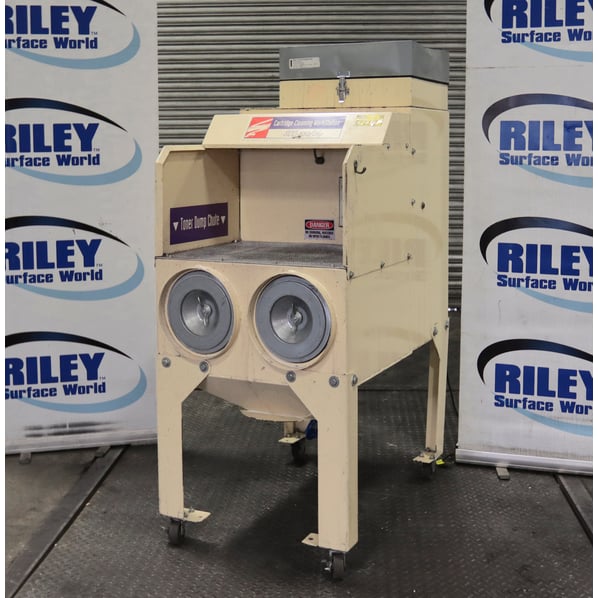

Static Control Components Mobile Cartridge Cleaning Workstation

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2313
Manufacturer
Static Control Components
Model
SCO-550-ENM
Serial
12052207
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
550 cfm / 935m3
Other Info
Mobile Downdraft Workstation
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
200kg
External Dimensions (WxDxH mm) [?]
720 x 1140 x 1680
Delivery
Your delivery options

Description

Suitable for a range of applications such as powder coating, fettling and grinding downdraft booth, this Static Control Components mobile, downdraft workstation can save 30% in production time when used in combination with compressed air cleaning.

The SCC-550 cartridge cleaning workstation is a mobile downdraft dust collection and cleaning unit, originally designed for printer cartridge cleaning and remanufacturing. Its versatile design also makes it suitable for applications such as powder coating preparation, fettling, grinding and other processes requiring effective fine dust capture.

Featuring a dual cartridge filtration system, integrated dust collection and a HEPA filter, the SCC-550 provides a compact, self-contained solution for capturing fine airborne particles. Its mobile design allows the workstation to be moved easily between working areas, while the integrated collection system eliminates the need for external exhaust ducting.

Operation

The SCC-550 uses a downdraft airflow design to draw dust downwards through the work area, helping gravity carry heavier particles into the integrated collection receptacle. Approximately 90% of dust is reported to fall naturally into the dump receptacle, while the remaining airborne particles are captured by the filtration system.

The workstation combines two cartridge filters with a HEPA filter to capture fine dust, while the supplied compressed air cleaning equipment supports efficient component cleaning. The unit is designed for straightforward installation: position it where required, connect a compressed air supply and plug it into a suitable electrical circuit.

Key Features & Benefits

  • High Performance Dust Collection - Nominal airflow of 550 CFM, designed to handle demanding fine dust cleaning applications.
  • Dual Cartridge Filtration - High efficiency filtration system designed to capture fine dust during operation.
  • HEPA Filtration - Includes an additional HEPA filter to capture fine airborne particles.
  • Integrated Dust Collection - Built in filter and dust receptacles remove the need for external collection ducting.
  • Compressed Air Cleaning - Designed to work alongside compressed air cleaning equipment to support efficient component cleaning.
  • Anti-Static Equipment - Additionally fitted with anti-static devices and an electrically charged ionic air wash gun.
  • Compact, Self Contained Design - Combines dust collection and filtration in one workstation with low total electrical power consumption.
  • Flexible Installation   Suitable for individual workstations or multiple units arranged across larger production facilities.

Technical Specifications

  • Manufacturer: Static Control Components
  • Model: SCC-550 Cartridge Cleaning Workstation
  • Work Envelope (W×D×H): 695 × 550 × 350mm
  • External Dimensions (W×D×H): 720 × 1140 × 1680mm
  • Motor Power: 0.75 kW
  • Nominal Airflow: 550 CFM
  • Electrical Supply: 220 V, 60 Hz dedicated circuit

pdf icon Print / Download Static Control Components Mobile Cartridge Cleaning Workstation Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
