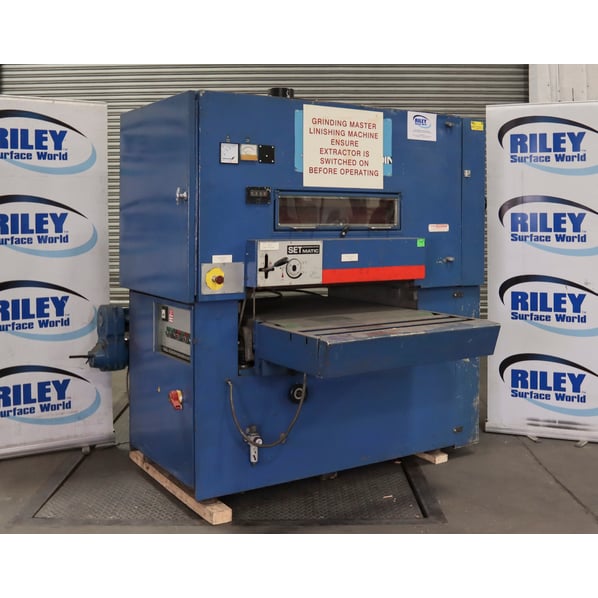

Grindingmaster Twin Head, Belt and Brush MCSB-900 Wide Belt Sander

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
PF1231J
Manufacturer
Grindingmaster
Model
MCSB-B-900
Serial
KA775-05
Condition
From a working environment, Seen powered at RSW
R.P.M.
Variable
Hp/Kw
15kW & 7.5kW
Other Info
Heavy Duty Through Feed Belt Grinder
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1555
External Dimensions (WxDxH mm) [?]
2030 x 1890 x 1910mm
Delivery
Your delivery options

Description

This pre-owned Grindingmaster is a premier industrial metal working multi finishing machine. The MCSB 900 is a 900mm wide belt dry working Grindingmaster that is equipped with powerful motors allowing it to process the toughest and heaviest jobs around. Set up with a belt and brush to produce superior finishes.

Typical Applications

  • Stock removal of multiple individual parts and sheet materials
  • Sizing and finishing of parts and sheet materials
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts
  • Calibrating or keying carbon, rubber, wood or other soft materials
  • Grain finishing of any material

Standard Features

  • Centralised operator control panel
  • Full 900mm working width
  • Wide belt head with fine adjustments of contact roll, 150mm overall clearance
  • Wide brush head fitted with polishing roller, these can be either a Scotchbrite roller or wire brush
  • Conveyor bed on 4 heavy duty precision spindles
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls
  • Motorised, single point thickness setting
  • Conveyor reverse for set-up
  • Variable speed table motor
  • Fixed/floating conveyor table
  • Thickness readout scale
  • Belt oscillation
  • Front edge safety bump E stop
  • Pneumatic tensioning
  • Air actuated braking
  • Load amp meter
  • 415 Volts, 50 Hz, 3 phase

Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

pdf icon Print / Download Grindingmaster Twin Head, Belt and Brush MCSB-900 Wide Belt Sander Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
