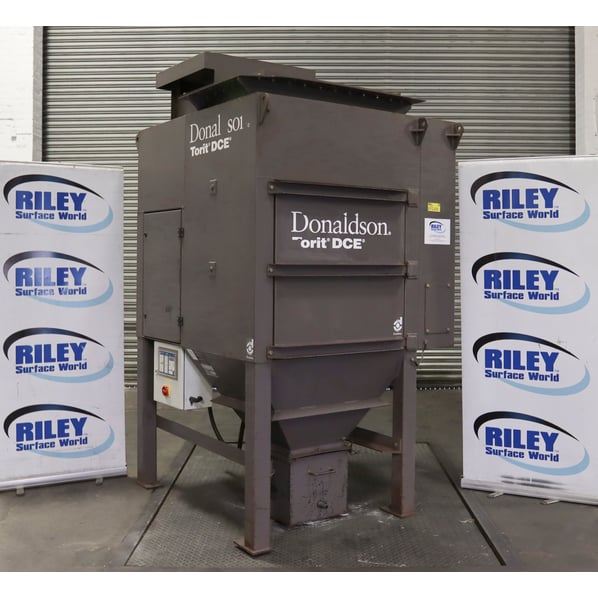

Donaldson Torit (DCE) DFPRO-4-SPRK-R Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2309
Manufacturer
Donaldson Torit (DCE)
Model
DFPRO 4-SPRK-R
Year of Manufacture
2007
Serial
58100161
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
2500 / 4250
Filter Area ft² / m²
760 // 74
Other Info
ATEX Rated Explosion Relief Panel / Door
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
950
External Dimensions (WxDxH mm) [?]
1600 x 1400 x 2100mm
Delivery
Your delivery options

Description

The Donaldson Torit® DCE® DFPRO SPK collectors are dust and fume collection systems specifically engineered for various applications including plasma, autogenous and laser cutting, dust laden air streams with the potential to carry sparks and hot dusts.

Donaldson is a leading worldwide provider of filtration systems that, enhance equipment performance and protect the environment.

The reverse pulse system of the DFPRO maintains optimum filter efficiency by automatically backwashing the filter elements with a 90 psi high-pressure jet of compressed air removing the contaminants and depositing them quickly into the waste collection bucket.

The high-performance Downflo family of dust collectors provides up to 25% more filtration capacity than other same-sized cartridge collectors. Powered by proprietary Ultra-Web® Nanofibre filtration technology, DFPRO delivers cleaner air, up to two times longer filter life, and greater cost savings.

Donaldson DFPRO SPK cartridge collectors enlist the latest developments in oval-shaped filters with the advanced Ultra-Web® filter media to provide a sophisticated and efficient solution for filtering a wide range of nuisance dusts.

The Ultra-Web® cartridge filters capture submicron particles with nano-fibre technology and pre-HEPA MERV 13 efficiency. Longer Filter Life that lasts up to 2 times longer than cellulose or blended media, depending on the application Greater Cost Savings Provides the best value and long-term savings.

DFPRO-R Offers:

  • Lower initial cost per cubic foot of air per minute (cfm).
  • Capacity rating ranging from 2500cfm / 4250M³/h.
  • Cartridge filer area 17.65 M² (190 ft²)  each offering a full 74 M²(760 ft²).
  • Higher efficiency—cleaner air.
  • Reinforced frame with roof-mounted explosion relief panel for use with ATEX-rated dusts.
  • Integral 3.0kW // 4Hp fan unit.
  • Secondary silencer box for reduced noise operation.
  • Lower pressure drop—greater energy savings.
  • Fewer filter changeouts.
  • Reduced filter disposal cost.
  • Easy system setup.
  • Less maintenance.

Easy To Use

Quick-release handles provide easy cover removal and faster filter access.

Compact Design

Small footprint for applications that require maximum cleaning efficiency in even smaller spaces.

Powerful

The proprietary ExtraLife Filter Cleaning System averages up to 30% increase in pulse cleaning energy for unmatched cleaning ability.

Electrical Requirements

  • 415V 3ph 6 FLC Amp 3kW DOL fan
  • 400 VAC Control 1.5 Amp 24 volt AC pulse control voltage

pdf icon Print / Download Donaldson Torit (DCE) DFPRO-4-SPRK-R Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
