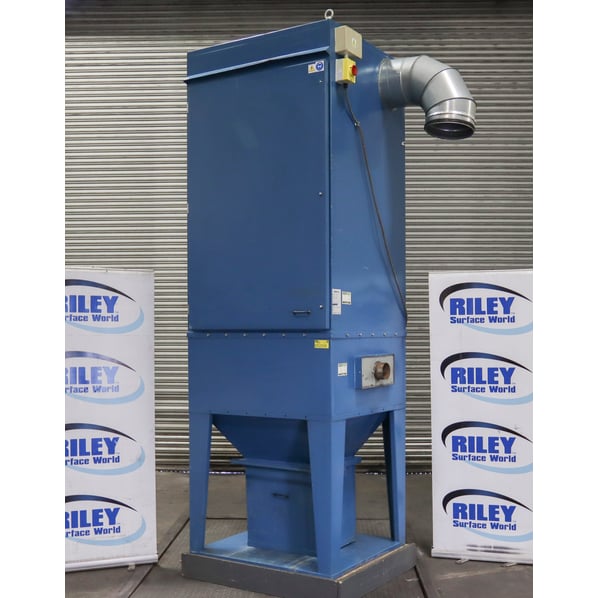

Nederman Auto M-Z 30 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2308
Manufacturer
Nederman
Model
Auto M-Z 3
Year of Manufacture
2012
Serial
201211283881
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
1750 // 3000
Filter Area ft² / m²
325 // 30
Other Info
400V / 3 phase / 50Hz Shaker Motor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
650
External Dimensions (WxDxH mm) [?]
1180 x 1480 x 3350mm
Delivery
Your delivery options

Description

Nederman Venting Unit

Nederman Venting unit applies  dust bag collector technology to continuous-duty, bin venting applications. It is typically used to vent displaced air and harmful products in bins or silos. The Bin Vent is compact in design, easy to install, eliminates ductwork and reduces installation expense.

Features:

  • 30m² filter area .
  • Weatherproof for location anywhere.
  • Clean air side maintenance to make bag changing and servicing a healthier task.
  • Shaker motor.
  • Efficient top mounted shaker ensures quick efficient cleaning and maximum bag life.
  • No need for compressed air.
  • Compact dimensions, with minimal height requirement.

Technical Parameters:

  • Maximum working temperature 80ºC.
  • Maximum negative pressure 4000 Pa .
  • Maximum positive pressure 1500 Pa.
  • Filter areas of 30 m².
  • Wide range of filter materials to suit most applications available;
  • Versatile inlet connection.
  • Outlet - Inside Ø: 310mm // Outside Ø: 310mm

Build Design;

The filter body, with full width opening front access door, is fitted with a multi vee pocket filter bag secured by a clamping frame at its lower end.

The upper end of the bag is suspended from a frame, which can pivot about ts central axis. This is in turn linked by a connecting rod to the shaker drive motor, robustly located within the unit top.

The filter body is mounted on the pre separation section which in turn is on top of the steel hoppers. The hoppers are fitted with a quick release bin mechanisms and rectangular steel bin of 25 l capacity.

Cleaning;

The shaft of the shaker motor is attached to a simple cam which, in turn is attached to the shaking mechanism.

The shaking mechanism pivots vigorously from side to side which causes the dust to break free from the inside of the filter bag. The dust then falls into the quick release metal bin located at the bottom of the filter unit.

pdf icon Print / Download Nederman Auto M-Z 30 Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
