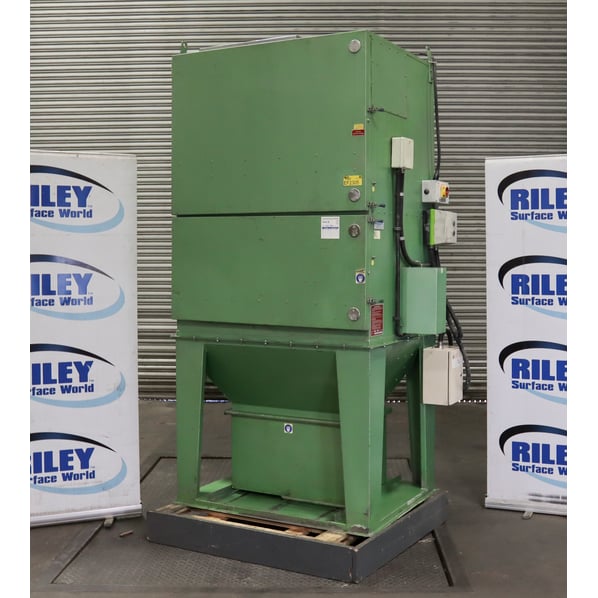

Filtex FX175 H Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2305
Manufacturer
Filtex
Model
FX175H
Year of Manufacture
2010
Serial
11059
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
1350 cfm @ 7.0” swg 2300 M3/Hr @ 178mm
Filter Area ft² / m²
175/ 16.25m2
Other Info
Secondary Hepa Filter (TBC)
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
400
External Dimensions (WxDxH mm) [?]
1550 x 970 x 2550mm
Delivery
Your delivery options

Description

This second hand FX175H 4kW // 5.5 Hp self contained centrifugal extraction fan is an extremely versatile fine dust filter, capable of handling numerous dust types over a wide range of applications.

Features

  • Self contained dust collector with integral fan, acoustic attenuator and automatic controller. Using a high efficiency envelope filter elements to cope with fine and light dusts.
  • Compatible with various combinations of air volumes and filtration areas to meet varying applications of intermittent processes.
  • Benefits from standard zintec steel for even more demanding environments.
  • Performance enables the recirculation (in some circumstances) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

Technical Specifications:

  • Model - FX 175H
  • Capacity - 1350 cfm @ 7.0” swg 2300 m3/Hr @ 178mm
  • Fan size - 4.0kW // 5.5 Hp
  • Filter area - 175ft² // 16M²
  • Secondary Hepa filter (TBC)
  • Bin capacity - 5.3ft³ // 150 litres
  • Noise level - 76dB(A)
  • Overall dimensions - 1550mm x 970mm x 2550mm
  • Weight - 400kg

The above design duties are based on an 8:1 cloth to air ratio.

pdf icon Print / Download Filtex FX175 H Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
