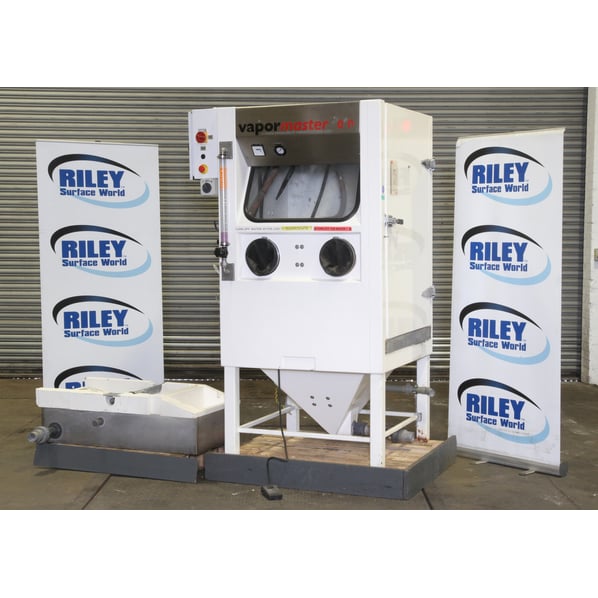

Vapormatt VaporMaster 1010 Aqua/Wet Blast Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SF1103
Manufacturer
Vapormatt
Model
VaporMaster 1010
Year of Manufacture
2002
Serial
0141
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
800 x 650 x 700mm
Work Handling Method
Manual, Large Side Loading Door
Other Info
Poly Lined 4.4kW Pump, Low Run Hours
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1300 x 1200 x 2100
Delivery
Your delivery options

Description

The Vapormatt VaporMaster is an advanced wet blasting cabinet designed for reliable, high quality surface finishing. This complete standalone system combines a stainless steel, composite and moulded polymer construction with corrosion resistance, sound insulation and long service life. Featuring mains water rinse, galvanised work platform, polyurethane pump and sludge settlement tank.

The patented sump designs allow low loading and working heights which eliminate the need for high operator work platforms. Specialised agitation systems prevent slurry system blockages even after prolonged shutdowns.

The machines do not need access to the rear face (except for maintenance) and so can be located directly against a wall. This reduces overall space requirements. High efficiency pumps and blast guns maximise processing speed & effectiveness whilst optimising energy use.

Vapormatt

Vapormatt uses water and an abrasive medium accelerated from a nozzle by compressed air to provide a very effective and environmentally friendly ‘closed-loop’ and controllable surface finishing, cleaning and conditioning process. Suitable for producing many different surface finishes.

The process can operate with all common blasting media including aluminium oxide, glass bead, silicon carbide, ceramic and stainless steel shot and plastic media. Media size can range from very coarse to ultra fine, typically from 16 to 1200 mesh.

Biodegradable degreasing agents can be added and the water can be heated, further extending the capability of the process and enabling parts to be degreased and cleaned in a single operation. Corrosion inhibitors can be utilised to protect the surface after cleaning.

Ergonomics and Operator Safety

Process guns are light and easy to use and can be provided with a hands free facility. The blast guns are fully compliant with relevant hand arm vibration regulations. All machines operate within current EU regulations for workshop environmental noise levels.

Applications

  • Aluminium Extrusion
  • Aerospace
  • Composites
  • Automotive

The Benefits

  • Ergonomic design for comfortable and efficient operation
  • Fully customisable configuration to meet your specific processing requirements
  • Consistent results with programmable recipe control and repeatable settings
  • Quick and easy rinsing with integrated mains-fed rinse gun
  • Enhanced operator safety & comfort with safety glass windows, door interlocks, foot controls, cushioned armholes and low loading height

Features

  • Side loading door

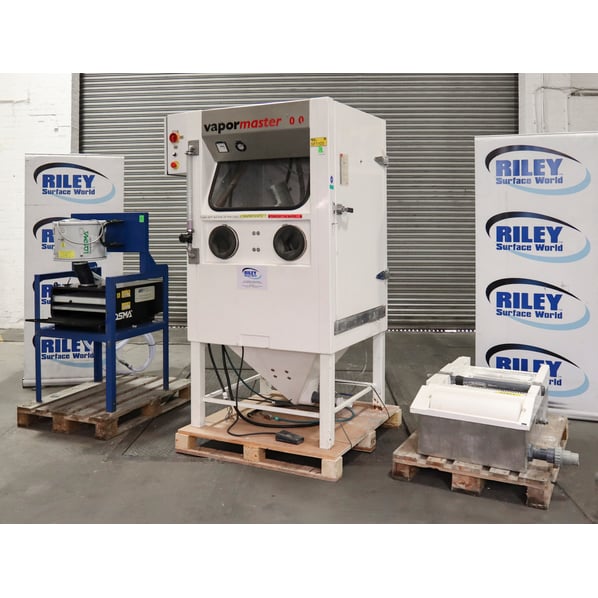

  • Sludge/settlement tank. SFI membrane filter
  • Safety screen with rinse and wiper
  • Roof steam exhaust vent
  • Internal lights
  • Air pressure regulation
  • 415v, 3 phase, 50 Hz, 20amps
  • 4kW Polyurethane pump
  • Sump Capacity 78 Litres with 2" BSP drain valve

Easy Maintenance

Machines are provided with:

  • Long life polyurethane pumps that can be speedily and easily removed without the need to drain the sump.
  • Long life polyurethane blast guns fitted with replaceable ceramic nozzles.

pdf icon Print / Download Vapormatt VaporMaster 1010 Aqua/Wet Blast Cabinet Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
