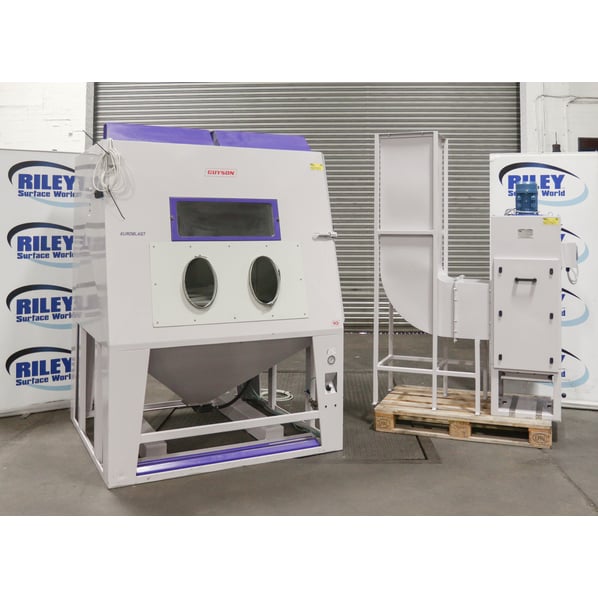

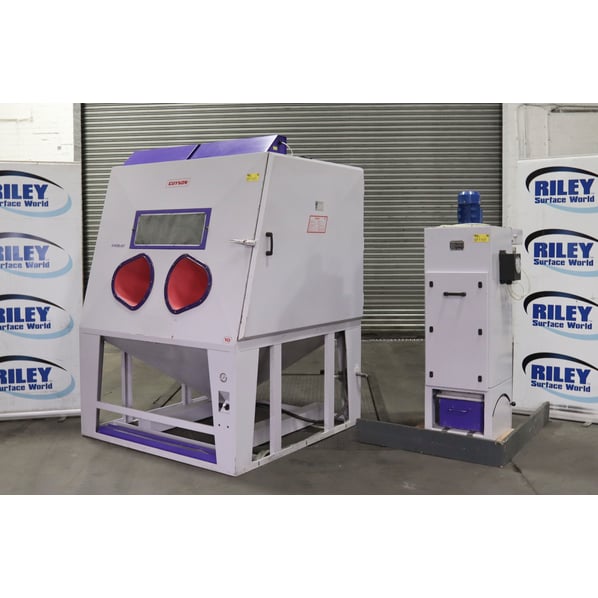

Guyson International Euroblast 10SF System Blast Cabinet with Dust Collector

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
SF1101
Manufacturer
Guyson International
Model
Euroblast 10SF System
Year of Manufacture
2012
Serial
507167
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
1480 x 1100 x 1400mm
Work Handling Method
Rotary Table Manual Load
Other Info
900mm Diameter Manual Rotary Table
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
413
External Dimensions (WxDxH mm) [?]
1550 x 2140 x 1500mm
Delivery
Your delivery options

Description

A second hand popular Guyson Model, this Euroblast 10SF suction venturi feed blast cabinet has a universal appeal for all those medium/larger sized engineering blast and cleaning jobs.

This shot blasting equipment offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others.

Typical Applications Include:

Cleaning without Dimensional Change

Using dryblast techniques pioneered by Guyson, even complicated shapes and sensitive materials can be efficiently cleaned without substrate erosion or dimensional change. Ideal for the precision cleaning of moulds, dies and tools without damage to delicate surfaces.

Cosmetic Finishing

Increasingly, cosmetic finishes can be the competitive edge that makes your product more attractive to the consumer. Whether you are addressing minor surface imperfections.

Deburring

Blast finishing can speedily remove lightly attached burrs from complex machined components and can be more effective than hand or machine deburring in areas with poor accessibility. Non-abrasive deburring media leave even fragile materials untouched.

Deflashing

Beadblasting can be used to rapidly and thoroughly deflash resin-moulded or die-cast components. Brittle flash can be cleanly removed from intricate components without altering adjacent surfaces by precise selective impact treatment.

Descaling

Use bead or grit blasting to quickly remove heat scale, surface discoloration, oxides, rust, weld scale or corrosion. Restore a component's looks and remove surface problems that interfere with painting, plating, coating, drawing and other processes.

Maintenance Clean, Re-manufacture, Refurbish

Guyson blast cabinets are successfully used in maintenance workshops, repair shops, service centres, garages and military depots on a varied component mix. They can eliminate laborious hand work, chemical cleaning and environmental issues from the workshop, and they are ideal for automotive core re-manufacture operations and refurbishing cutting tools, TCT and diamond tipped routers, saw blades, drills etc.

Surface Etching

Improved surface preparation or 'keying' of component surfaces can be achieved using Guyson blast equipment. Fine media blasting in one of our blast systems delivers very real improvements in adhesion for performance critical components such as medical implants when they are etched prior to ceramic or PVD/CVD coating.

Features Include:

  • Twin gauntlets
  • Air pressure regulator
  • Front viewing window
  • Internal lighting
  • Dust control system

Technical Details

  • Model - Euroblast cabinet model 10F
  • Overall dimensions: 1550mm x 2140mm x 1500mm
  • Blast chamber dimensions: 1480mm x 1100mm x 1400mm
  • Turntable diameter: Ø900mm
  • Maximum floor load (evenly distributed): 750kg
  • Maximum turntable load (evenly distributed): 500kg
  • Average noise levels at 1 Metre with dust collector with dust collector and cyclone: <80dB(A)
  • Floor height: 845mm
  • Armhole height: 1075mm
  • Maximum air pressure: 90 psi / 6 bar
  • Maximum air supply: 77.4 m3/hr or 42 CFM
  • Cabinet lighting
  • Electric supply: Single phase, 230 V, 50 Hz
  • LED link light: 7W
  • Fuse rating: 2 Amp
  • Operator protection required - hand and lower arm by gloves or gauntlets (supplied)

C400/3 Dust Collector

  • Year of manufacture: 2012
  • Serial: 507167
  • External dimensions: 560mm x 1620mm x 780mm
  • Weight: 107kg
  • Inlet diameter: 150mm
  • Extraction outlet: Open exhaust
  • Maximum inlet static pressure: 165mm
  • Maximum inlet static pressure: 1620 Pa
  • Measured airflow (with open inlet/outlet): 11m³/min
  • Adjustable airflow
  • Number of primary filters: 1
  • Type of primary filter: cartridge filter (polyester element)
  • Filtration area: 10m² // 97ft²
  • Air flow rating (with a filter velocity of 1.5 m/min): 900 m³/hr // 530 CFM
  • Filter cleaning system: Manual pulse air cleaning system
  • Air consumption: 7 litres per pulse
  • Maximum compressed air supply pressure: 4.7 bar

pdf icon Print / Download Guyson International Euroblast 10SF System Blast Cabinet with Dust Collector Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
