Machines & equipment for sale

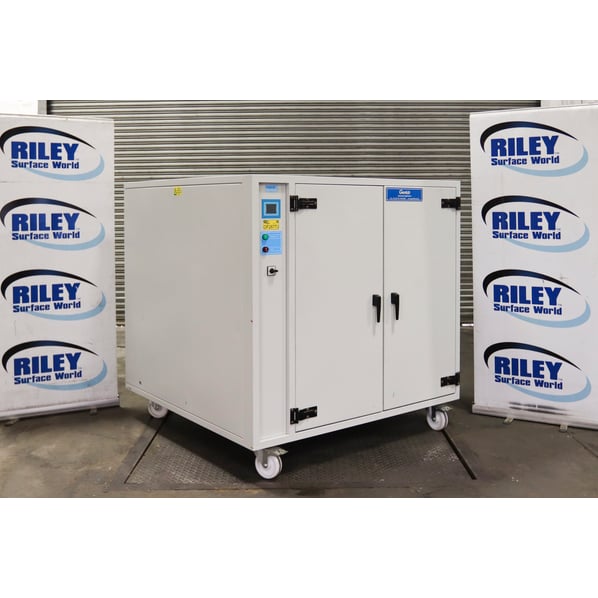

Genlab PRIME XL Laboratory Oven

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Contact Us
Stock No
OF2677J
Manufacturer
Genlab
Model
PRI/1600H/TDIG PRIME XL
Year of Manufacture
2023
Serial
23F003
Condition
From a working environment, Excellent Condition
Internal Size (WxDxH mm) [?]
1200 x 1150 x 1240mm, 1600L Capacity
Max Temp
100°C
Other Info
415 Volts : Elements = 3.6kW
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
500kg
External Dimensions (WxDxH mm) [?]
1600 x 1600 x 1600mm
Delivery
Your delivery options

Description

The Genlab 1600H Prime XL multi-purpose incubator is a high capacity, fan assisted unit engineered for demanding industrial, R&D, and production environments. Built to Genlab's high manufacturing standards, these ovens offer an enhanced temperature accuracy and an extended operating range up to 100°C.

Suitable for uniform heating for a wide variety of laboratory and production applications.

Featuring a robust heavy duty panelled construction, a mirror polished stainless steel chamber, reinforced shelving for increased load capacity, and precision PID temperature control via the intuitive TDIG touchscreen controller.

Temperature Specification

  • Fast, uniform heating – Incoloy sheathed heating elements, positioned within the side fan duct, provide rapid heat-up and excellent temperature distribution throughout the chamber.
  • Wide operating range – Reliable temperature control from ambient +8°C to 100°C for a broad range of incubation applications.
  • Outstanding precision – 0.1°C control resolution with <0.4°C control accuracy ensures repeatable, dependable test conditions.
  • Excellent temperature stability – Maintains ±0.2°C stability at 37°C for consistent incubation performance.
  • Uniform chamber conditions – Achieves ±1.0°C temperature uniformity at 37°C, helping ensure reliable results across the entire load.
  • Quick to operating temperature – Reaches 37°C in approximately 20–22 minutes, reducing waiting time between test cycles.
  • Rapid temperature recovery – Returns to setpoint in around 5 minutes after a 30-second door opening, minimising disruption to sensitive samples.
  • Enhanced safety protection – Independent Pt100A overheat protection with configurable alarms and automatic or manual reset safeguards both the chamber and valuable contents.

Controls

  • Intuitive 3.2" colour touchscreen – TDIG PID controller with real-time clock for simple, user-friendly operation.
  • Dual sensor protection – Independent Pt100A control and overheat sensors deliver accurate temperature regulation with built-in safety.
  • Advanced process programming – Configure countdown timers, 8-stage profiles, cyclic operation and 24/7 scheduling to automate complex heating cycles.
  • Comprehensive data logging – Monitor temperature trends for up to 48 hours on-screen, with USB export of raw process data and energy consumption.
  • Integrated energy monitoring – Built-in kWh meter helps track power usage and improve operational efficiency.
  • Customisable operation – Advanced control features can be enabled or disabled to suit specific applications, with optional alarm output upgrades available.
  • Convenient access – Side-mounted control panel provides easy operation while maximising chamber accessibility.

Construction

  • Robust industrial construction – Structural steel frame with a powder-coated exterior for long-lasting durability.
  • Stainless steel chamber – 304 polished stainless steel interior offers excellent corrosion resistance and easy cleaning.
  • Thermal efficiency – High density insulation and high-temperature silicone door seals minimise heat loss and improve energy efficiency.
  • Uniform heating – Fan assisted horizontal airflow ensures consistent temperatures throughout the chamber.
  • Easy loading access – Twin horizontal doors provide convenient access to large or multiple product loads.
  • Flexible shelving system – Adjustable stainless steel shelves with 30–40kg capacity per shelf accommodate a wide variety of products and sample sizes.
  • Built for mobility – Heavy-duty castor wheels allow the incubator to be easily positioned within laboratories or production environments.

Dimensions & Capacity

  • Internal Volume – 1600 Litres
  • External dimension (WxDxH) - 1600 x 1600 x 1600mm
  • Internal Dimensions (WxDxH) - 1200 x 1150 x 1240mm
  • Weight  ~ 500kg (TBC)

Electrical Requirements

  • 415 V AC, 3 phase + N + E

Safety Systems

The built in safety system provides reliable protection through an independent overheat probe, configurable alarm limits, and hysteresis control. With flexible reset options and intelligent power-failure behaviour, the system can either enter a safe standby mode or automatically resume operation to the default setpoint, ensuring secure and controlled performance.

pdf icon Print / Download Genlab PRIME XL Laboratory Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
